Installation

INSTALLATION




1. Install A/C condenser, (if removed).




2. Install radiator fan assemble, if removed.
3. Install auxiliary transmission cooler, if removed.

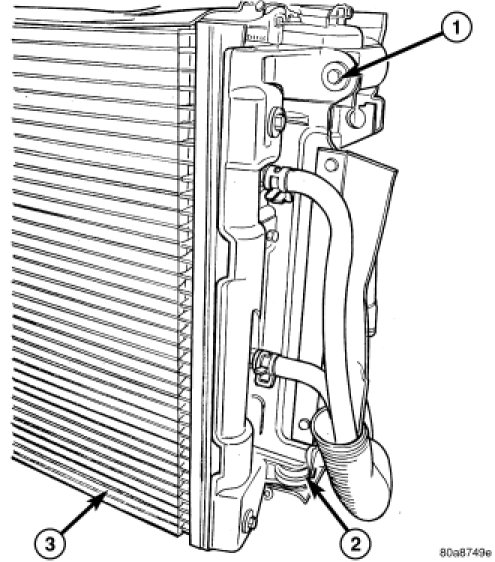

4. Slide radiator down into position. Seat the radiator with the rubber isolators into the mounting holes provided, with a 4.5 kg (10 lbs.) force.
5. Install mounting screws.
6. Connect the cooling fan electrical connector.

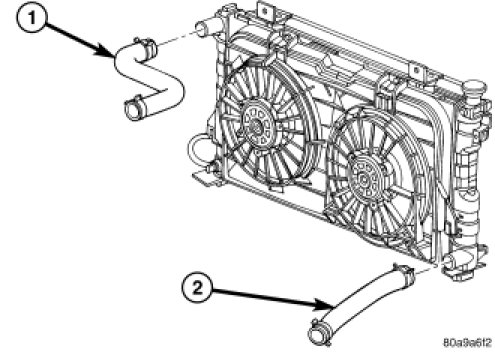

7. Install the radiator upper and lower hoses




8. In the LH and RH radiator seals.
9. Install the upper radiator seal.
10. Install the auxiliary transmission cooler hoses.
11. Connect the coolant reserve/recovery hose.
12. Install the front fascia.
13. Fill the cooling system.
14. Connect negative cable to battery.
