Multiplexer-Satellite

Component ID: 215
Component : MULTIPLEXER-SATELLITE

Connector:

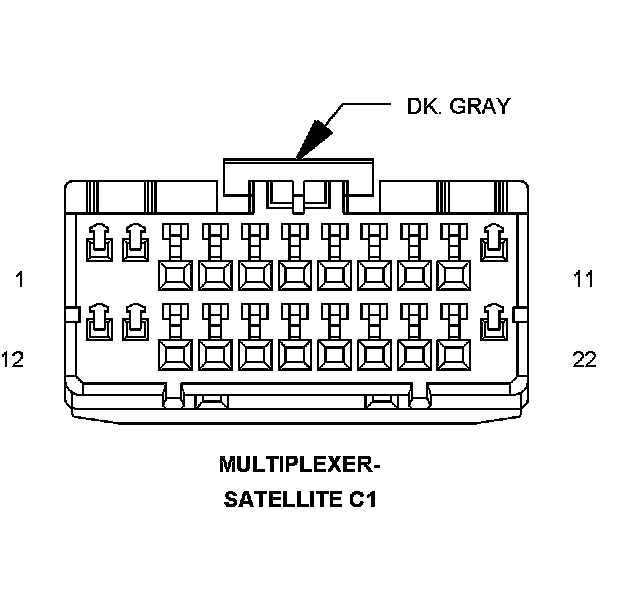

Name : MULTIPLEXER-SATELLITE C1
Color : DK. GRAY
# of pins : 22




Pin Description Circuit
1 AUDIO MUX LEFT X417 22DG/WT
2 AUDIO MUX RIGHT X416 22GY/WT
3 AUDIO RETURN X916 22GY/OR
4 - -
5 PCI BUS D25 20WT/VT
6 IGNITION RUN/ACC SIGNAL X112 20DG/GY
7 IGNITION RUN/ACC SIGNAL X112 20DG/GY
8 AUDIO SIGNAL RIGHT (+) X16 22DG/YL
9 SHIELD X607 20
10 AUDIO SIGNAL COMMON X917 22DG
11 AUDIO SIGNAL LEFT (+) X17 22DG/OR
12 - -
13 AUDIO MUX ENABLE X480 20DG/LB
14 - -
15 GROUND Z141 20BK/TN
16 PANEL LAMPS DRIVER E14 20OR/TN
17 FUSED B(+) X160 20GY/YL
18 PCI BUS D25 20WT/VT
19 GROUND Z141 20BK/TN
20 - -
21 FUSED B(+) X160 20GY/YL
22 - -

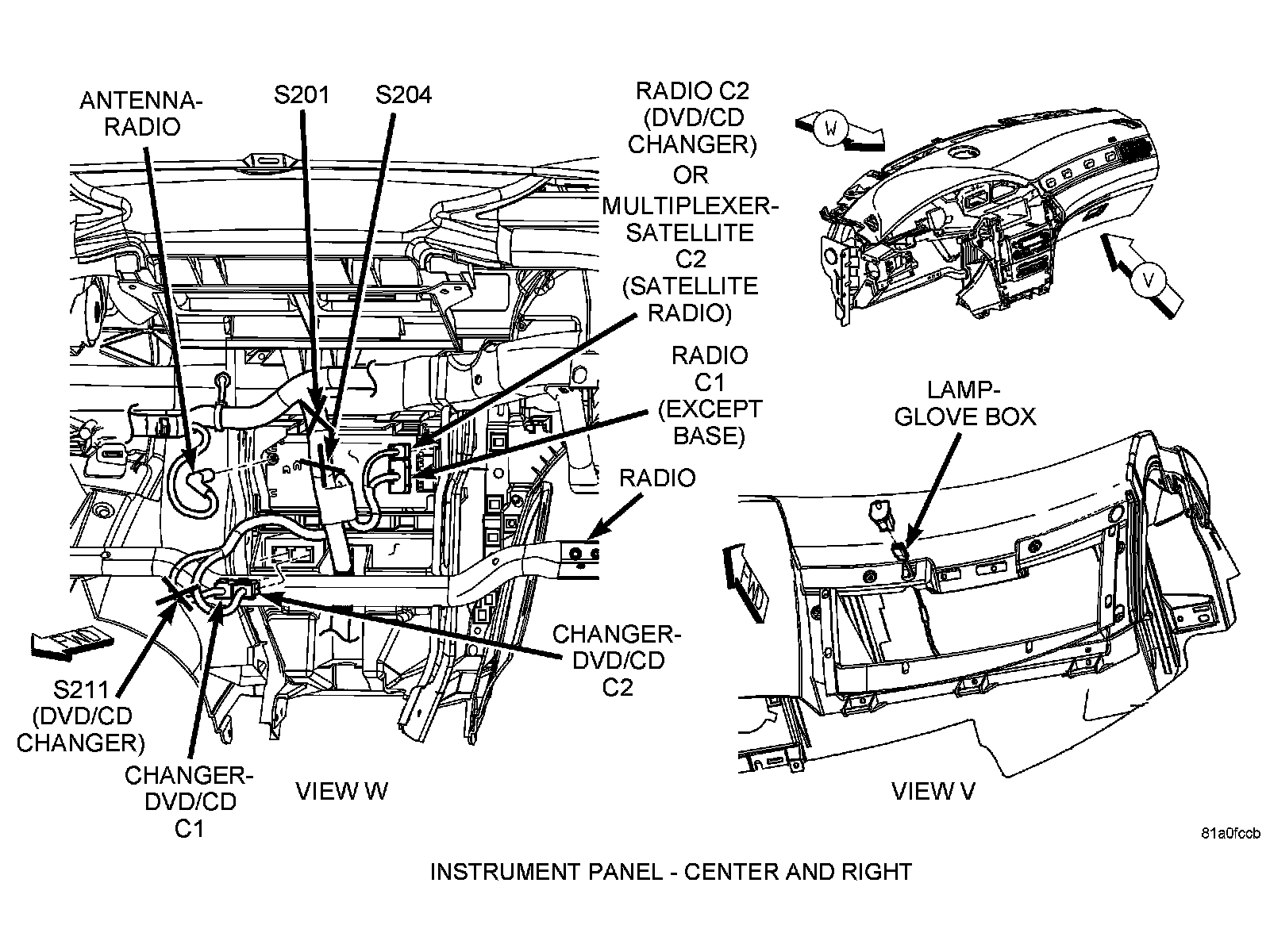

Component Location - 14




Component Location - 15




Component Location - 16






Connector:

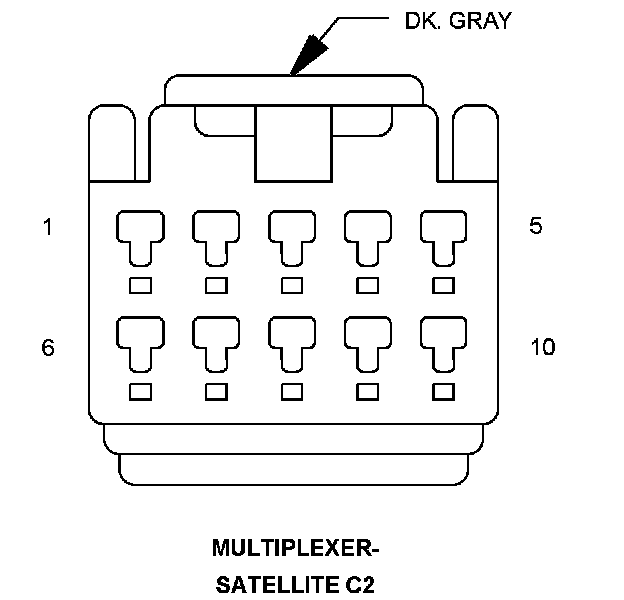

Name : MULTIPLEXER-SATELLITE C2
Color : DK. GRAY
# of pins : 10




Pin Description Circuit
1 AUDIO OUT RIGHT X40 22GY/WT
2 COMMON AUDIO X140 22GY/OR
3 SHIELD X207 22
4 PCI BUS D25 20WT/VT
5 IGNITION RUN/ACC SIGNAL X112 20DG/GY
6 AUDIO OUT LEFT X41 22DG/WT
7 - -
8 - -
9 PANEL LAMPS DRIVER E14 20OR/TN
10 - -

Component Location - 14




Component Location - 15




Component Location - 16
