Power Trunk / Liftgate Control Module

Component ID: 192
Component : MODULE-POWER LIFTGATE

Connector:

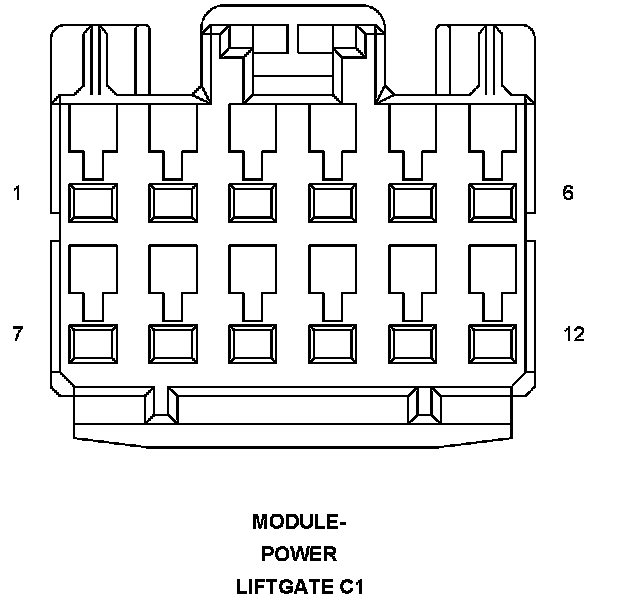

Name : MODULE-POWER LIFTGATE C1
Color :
# of pins : 12




Pin Description Circuit
1 POSITION SENSOR SIGNAL 1 Q204 20OR/DG
2 POSITION SENSOR SUPPLY Q203 20OR/TN
3 - -
4 LIFTGATE CLUTCH DRIVER Q201 18OR/LG
5 LIFTGATE OPEN DRIVER Q88 14TN/BR
6 LIFTGATE CLOSE DRIVER Q89 14TN/OR
7 POSITION SENSOR SIGNAL 2 Q205 20OR/DB
8 - -
9 - -
10 - -
11 - -
12 FULL OPEN SWITCH SENSE Q51 20OR

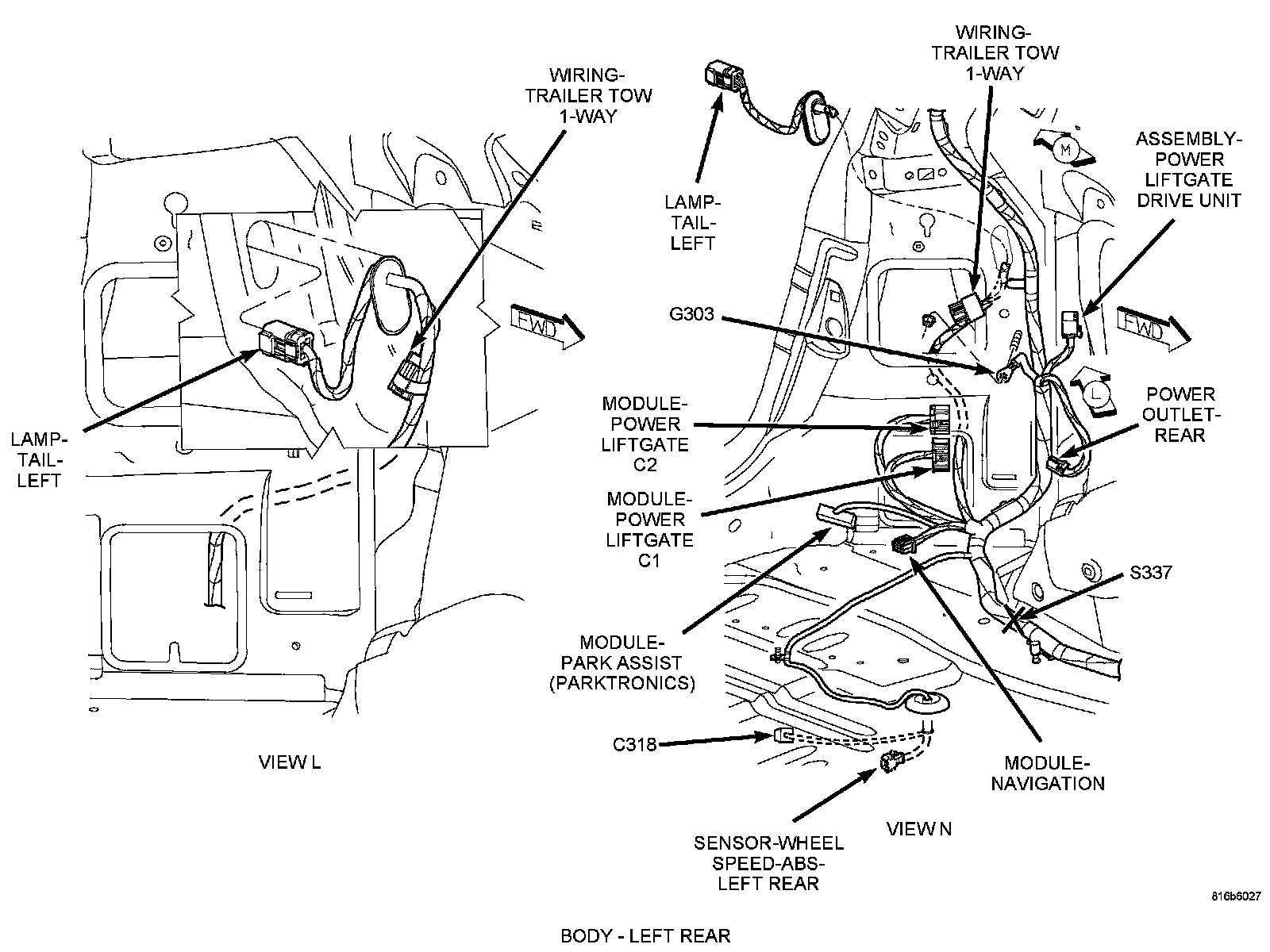

Component Location - 28






Connector:

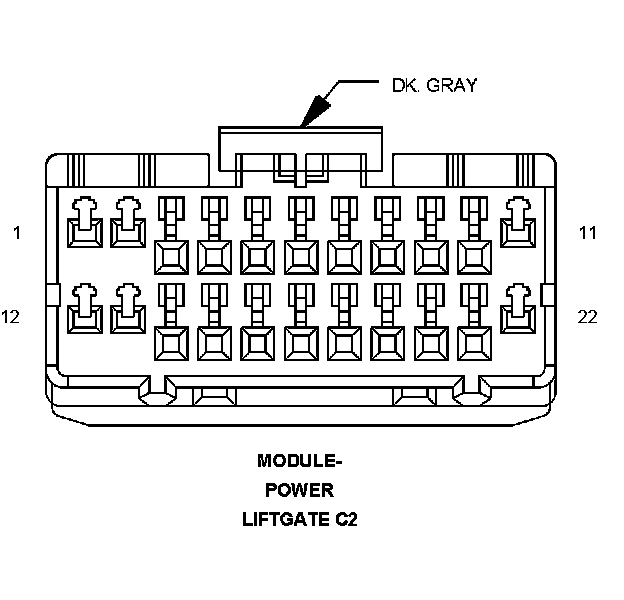

Name : MODULE-POWER LIFTGATE C2
Color : DK. GRAY
# of pins : 22




Pin Description Circuit
1 - -
2 - -
3 - -
4 LIFTGATE TEMPERATURE SENSOR SIGNAL G32 20VT/LB
5 - -
6 LEFT PINCH SENSOR SIGNAL Q75 20OR/LB
7 - -
8 - -
9 LIFTGATE LATCH CLUTCH DRIVER Q83 18OR/GY
10 - -
11 LIFTGATE LATCH RELEASE DRIVER Q85 16TN/WT
12 - -
13 LOGIC GROUND Q901 20OR/VT
14 - -
15 - -
16 - -
17 CAN B BUS(-) D54 20WT
18 CAN B BUS(+) D55 20WT/OR
19 LIFTGATE CHIME DRIVER Q94 22TN/LG
20 LIFTGATE PAWL SWITCH SENSE Q60 22OR/YL
21 LIFTGATE AJAR SWITCH SENSE G78 20VT/OR
22 LIFTGATE LATCH CINCH DRIVER Q84 16TN/GY

Component Location - 28






Connector:

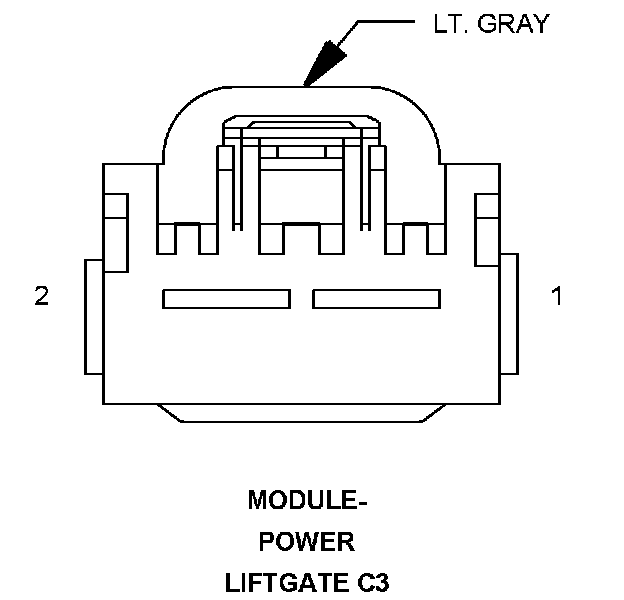

Name : MODULE-POWER LIFTGATE C3
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 GROUND Z125 12BK/OR
2 FUSED B(+) A115 12YL/RD

Component Location - 28
