Navigation Module

Component ID: 188
Component : MODULE-NAVIGATION

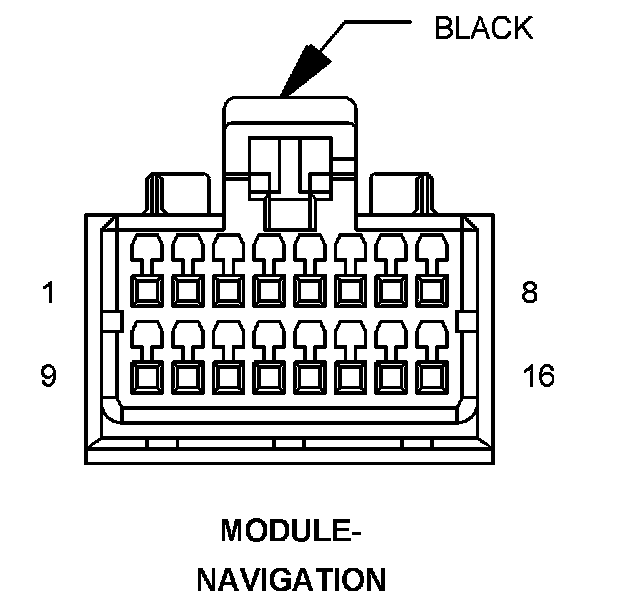

Connector:
Name : MODULE-NAVIGATION
Color : BLACK
# of pins : 16




Pin Description Circuit
1 FUSED B(+) A114 20GY/RD
2 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
3 GROUND Z495 18BK/GY
4 NAVIGATION AUDIO (+) X400 20GY/WT
5 SHIELD G591 22
6 RED SIGNAL G400 20VT/LB
7 GREEN SIGNAL G420 20VT/BR
8 - -
9 - -
10 - -
11 - -
12 NAVIGATION AUDIO (-) X940 20GY/LB
13 - -
14 SCREEN SYNCHRONIZE G430 20VT/GY
15 BLUE SIGNAL G410 20VT/LG
16 PCI BUS D25 20WT/VT

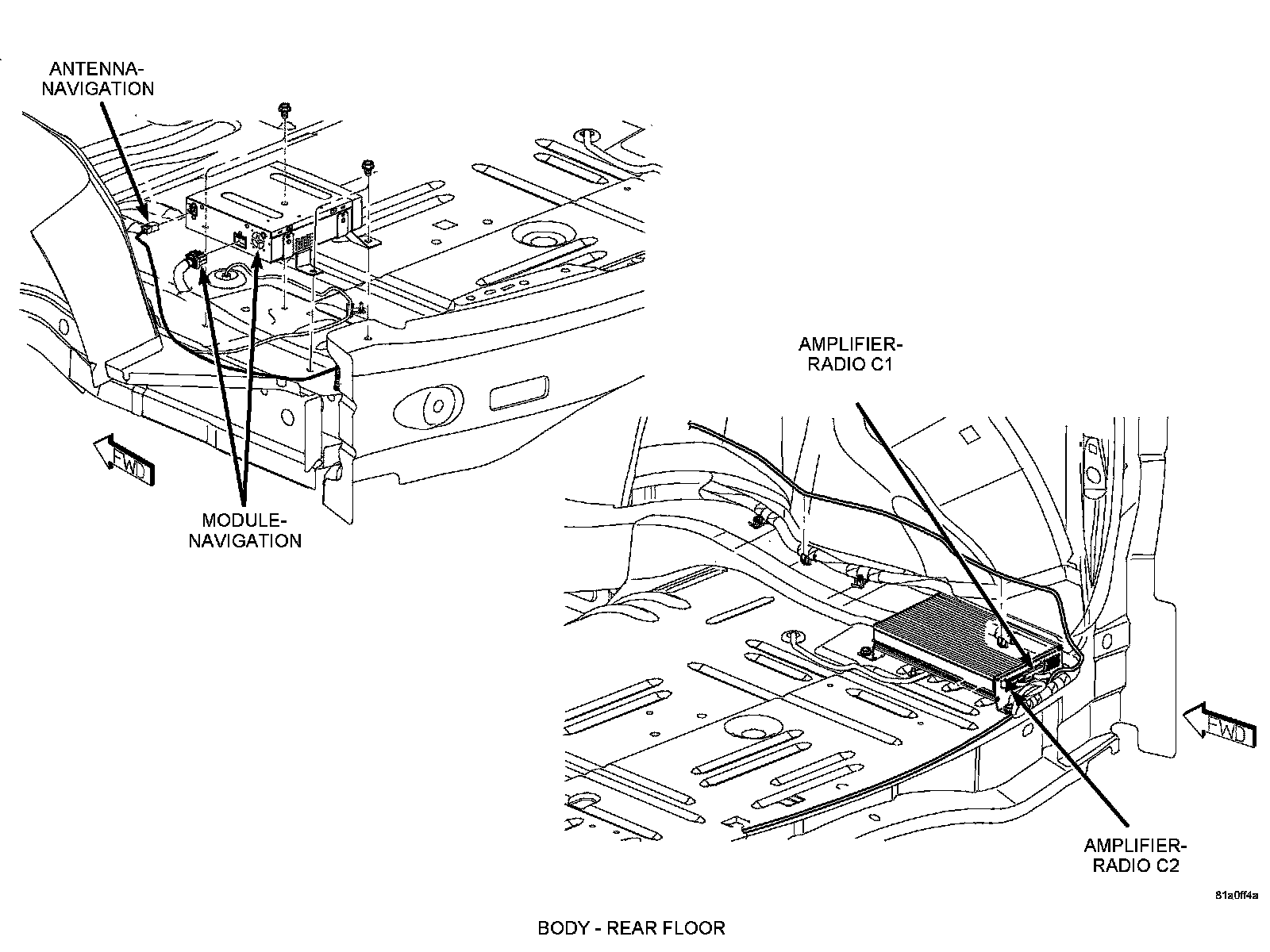

Component Location - 28




Component Location - 33
