Main Relay (Computer/Fuel System)

Component ID: 226

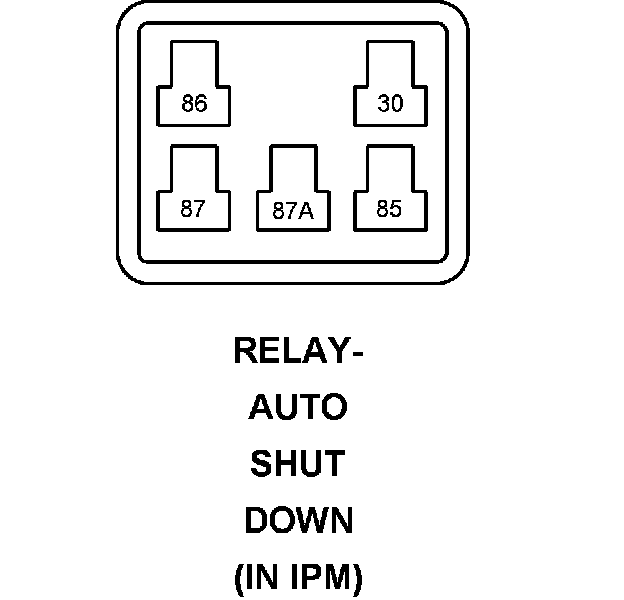

Component : RELAY-AUTO SHUT DOWN

Connector:
Name : RELAY-AUTO SHUT DOWN
Color :
# of pins : 0




30 FUSED B(+) INTERNAL
85 FUSED B(+) INTERNAL
86 ASD RELAY CONTROL K51 18BR/GY
87 ASD RELAY OUTPUT F343 16PK/BR
87A - -
