Engine Control Module
Component ID: 193
Component : MODULE-POWERTRAIN CONTROL
Connector:

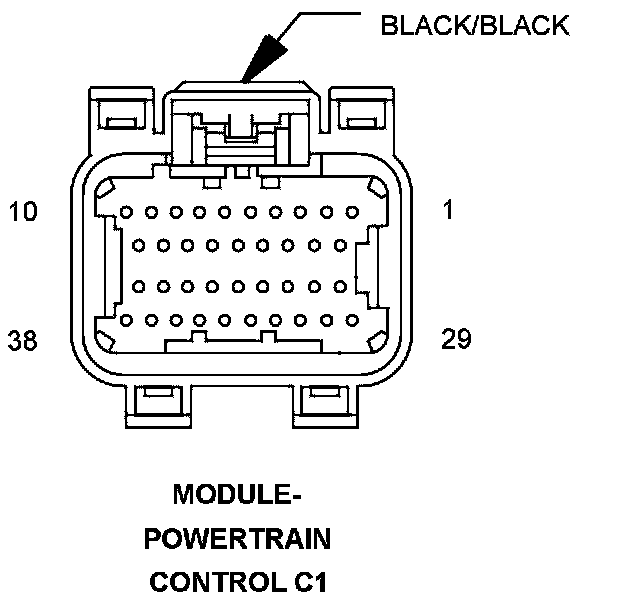

Name : MODULE-POWERTRAIN CONTROL C1
Color : BLACK/BLACK
# of pins : 38
Pin Description Circuit
1 - -
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 - -
9 GROUND Z130 16BK/BR
10 FUSED B(+) A109 18OR/RD
11 FUSED IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/GY
12 IGNITION UNLOCK-RUN-START F1 20PK/WT
13 - -
14 - -
15 - -
16 SRV CONTROL K236 18DB/LG
17 - -
18 GROUND Z131 16BK/DG
19 - -
20 OIL PRESSURE SIGNAL G6 16VT/GY
21 SRV SIGNAL K235 20DB/YL
22 EMCC VFS CONTROL T84 18DG/TN
23 MTV SIGNAL K234 20DB/OR
24 FUSED B(+) A804 18RD/GY
25 - -
26 - -
27 5 VOLT SUPPLY F856 20YL/PK
28 - -
29 FUSED B(+) A109 18OR/RD
30 IGNITION SWITCH OUTPUT (START) T751 20YL
31 O2 1/2 SIGNAL K141 18DB/YL
32 O2 RETURN (DOWN) K904 20DB/DG
33 O2 2/2 SIGNAL K243 18BR
34 CAN C BUS (+) D65 20WT/LG
35 CAN C BUS (-) D64 20WT/LB
36 - -
37 - -
38 ASD RELAY OUTPUT F343 16PK/BR

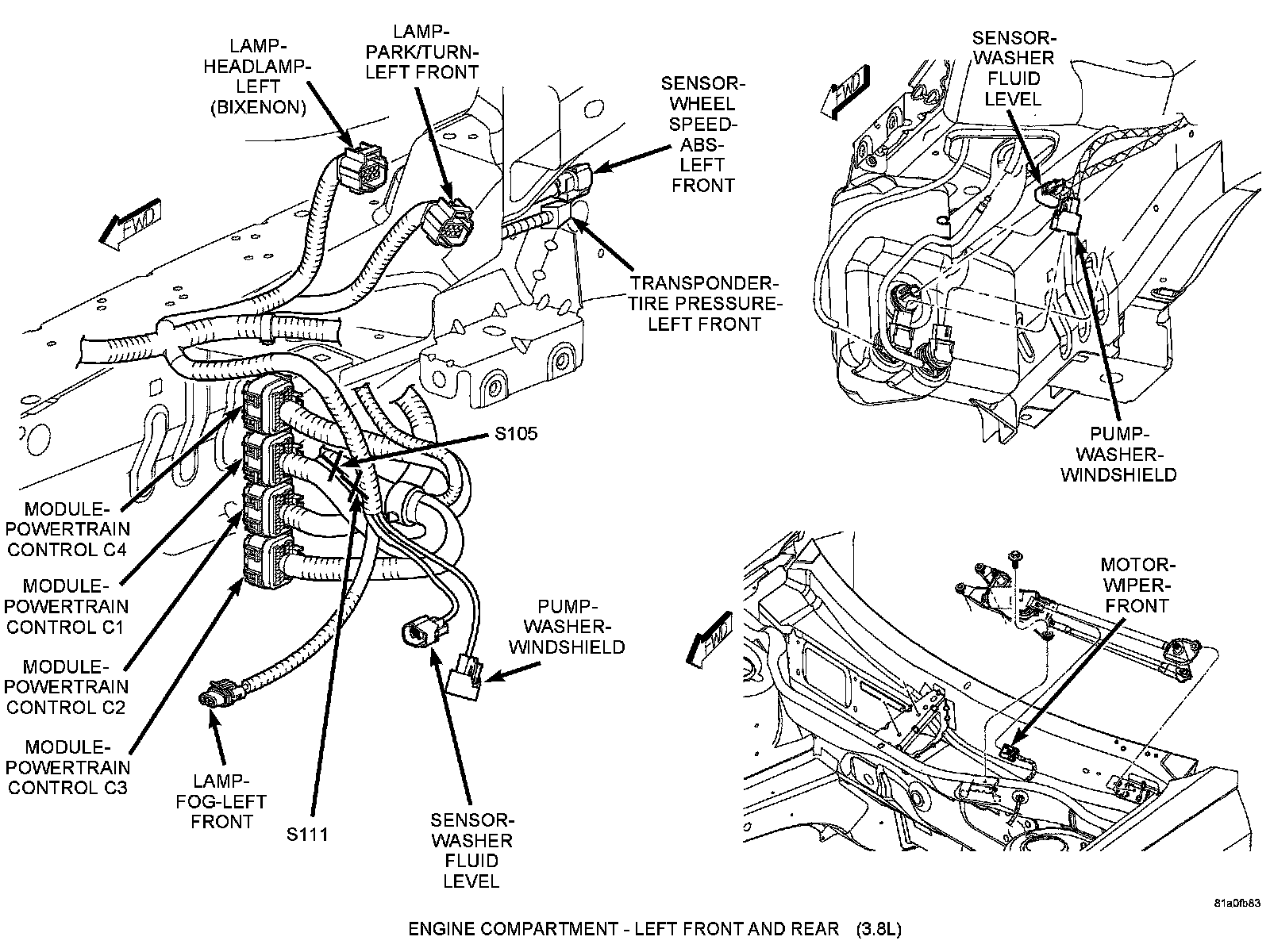

Component Location - 6
3.8L:

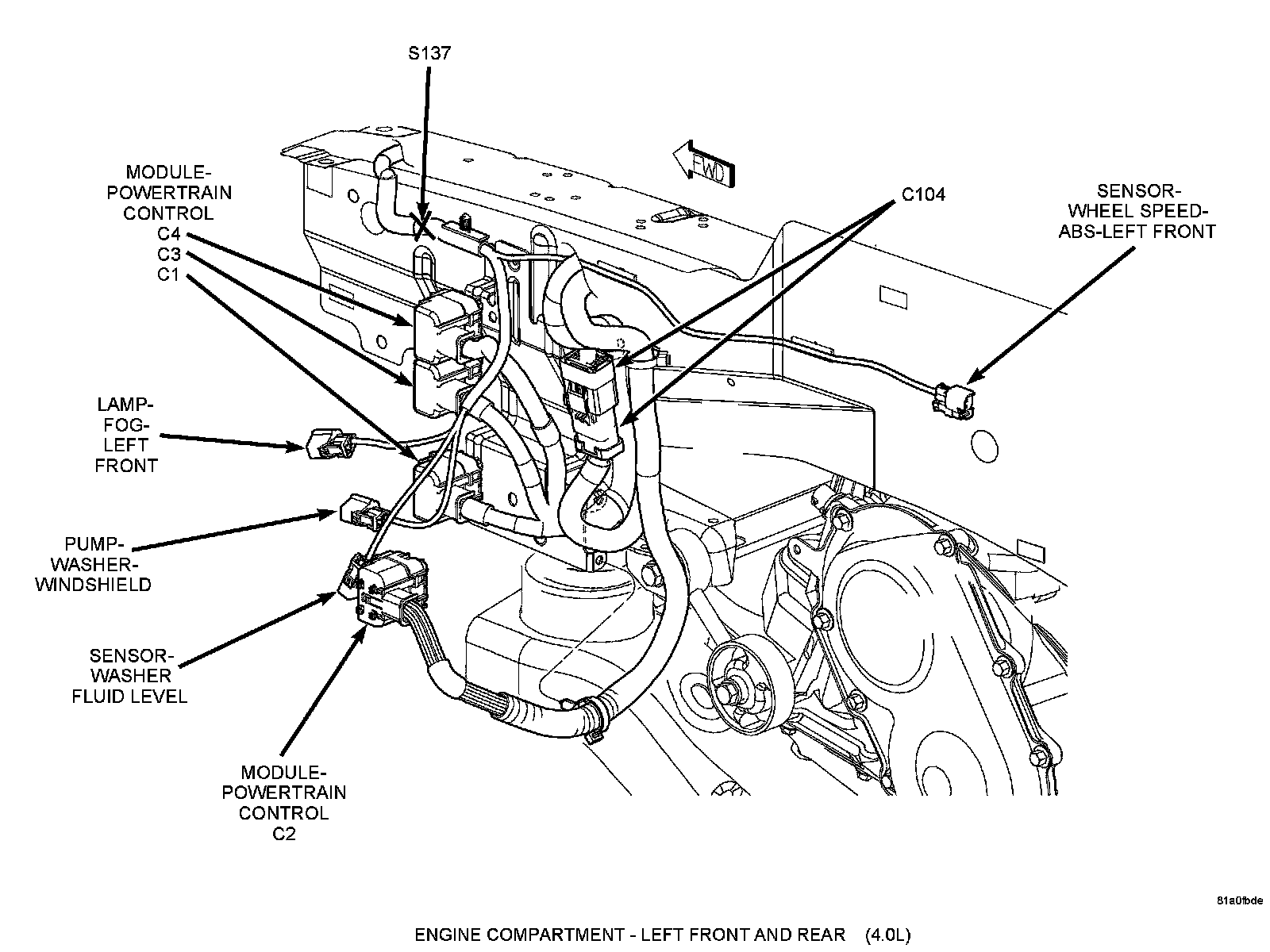

Component Location - 9
4.0L:
Connector:

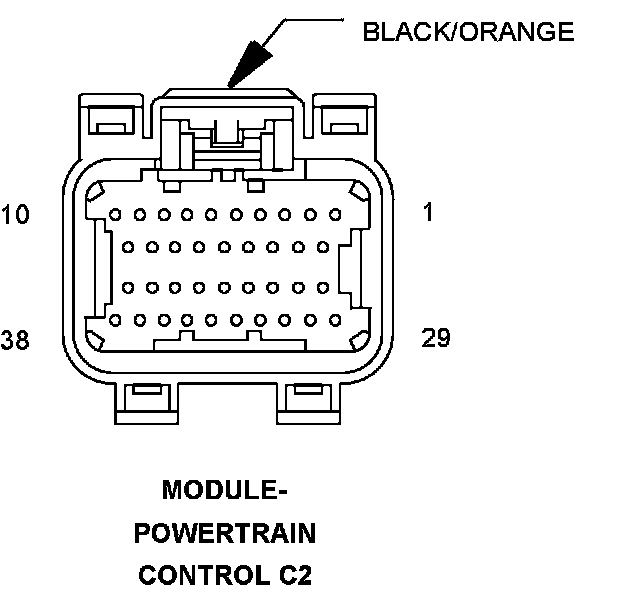

Name : MODULE-POWERTRAIN CONTROL C2
Color : BLACK/ORANGE
# of pins : 38
Pin Description Circuit
1 COIL 6 CONTROL K10 18DB/OR
2 COIL 5 CONTROL K16 18DB/YL
3 COIL 4 CONTROL K15 18DB/GY
4 INJECTOR 6 CONTROL K58 16BR/VT
5 INJECTOR 5 CONTROL K38 16BR/OR
6 ETC MOTOR (+) K124 18DB/GY
7 COIL 3 CONTROL K18 16DB/OR
7 COIL 3 CONTROL K18 18DB/OR
8 EGR CONTROL K35 18DB/VT
9 COIL 2 CONTROL K17 16DB/TN
9 COIL 2 CONTROL K17 18DB/TN
10 COIL 1 CONTROL K19 16DB/DG
10 COIL 1 CONTROL K19 18DB/DG
11 INJECTOR 4 CONTROL K14 16BR/TN
12 INJECTOR 3 CONTROL K13 16BR/LB
13 INJECTOR 2 CONTROL K12 16BR/DB
14 INJECTOR 1 CONTROL K11 16BR/YL
15 TP SENSOR GROUND K922 20BR/DB
16 MTV CONTROL K136 18BR
17 O2 2/1 HEATER CONTROL K199 18BR/VT
18 O2 1/1 HEATER CONTROL K99 18BR/TN
19 GEN FIELD CONTROL K20 18BR/GY
20 ECT SIGNAL K2 18VT/OR
21 TP SIGNAL 1 K22 18BR/OR
22 EGR SIGNAL K34 20DB/LG
23 MAP SIGNAL K1 20VT/BR
24 KS RETURN K942 20BR/LG
25 KS SIGNAL K42 20DB/OR
26 - -
27 SENSOR GROUND K900 20DB/DG
28 TP SIGNAL 2 K122 20BR/DG
28 TP SIGNAL 2 K122 18BR/DG
29 5 VOLT SUPPLY F855 20PK/YL
30 IAT SIGNAL K21 20BR/WT
31 O2 1/1 SIGNAL K41 18DB/LB
32 O2 RETURN (UP) K902 18BR/DG
33 O2 2/1 SIGNAL K43 18DB/LG
34 CMP SIGNAL K44 20DB/GY
35 CKP SIGNAL K24 20BR/LB
36 - -
37 - -
38 ETC MOTOR (-) K126 18DB/LG
Component Location - 6
3.8L:
Component Location - 9
4.0L:
Connector:

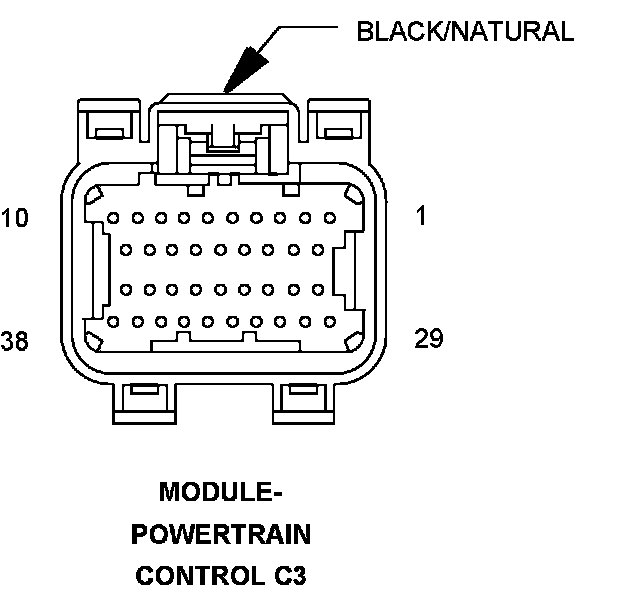

Name : MODULE-POWERTRAIN CONTROL C3
Color : BLACK/NATURAL
# of pins : 38
Pin Description Circuit
1 - -
2 - -
3 ASD RELAY CONTROL K51 18BR/GY
4 - -
5 - -
6 RAD FAN RELAY CONTROL K173 20BR/VT
6 RAD FAN RELAY CONTROL K173 18BR/VT
7 - -
8 - -
9 O2 1/2 HEATER CONTROL K299 18BR/OR
10 O2 2/2 HEATER CONTROL K399 18BR/GY
11 A/C CLUTCH RELAY CONTROL C13 20LB/OR
12 - -
13 - -
14 BRAKE SIGNAL 2 B16 20LB/DG
15 S/C SWITCH GROUND K975 18BR/OR
16 APP SENSOR GROUND 1 K167 20BR/YL
17 APP SENSOR GROUND 2 K400 20BR/VT
18 S/C SIGNAL 2 V38 20VT/OR
19 ASD RELAY OUTPUT F343 16PK/BR
20 EVAP PURGE CONTROL K52 20DB/WT
21 - -
22 - -
23 BRAKE SIGNAL 1 B29 20DG/WT
24 - -
25 APP SIGNAL 1 K23 20BR/WT
26 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
27 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
28 ASD RELAY OUTPUT F343 16PK/BR
29 EVAP PURGE RETURN K70 20DB/BR
30 - -
31 - -
32 - -
33 - -
34 S/C SIGNAL 1 V37 20VT
35 ESM SIGNAL K107 20VT/WT
36 APP SIGNAL 2 K29 20WT/BR
37 FUEL PUMP RELAY CONTROL K31 20BR
38 STARTER RELAY CONTROL T752 20DG/OR
Component Location - 6
3.8L:
Component Location - 9
4.0L:
Connector:

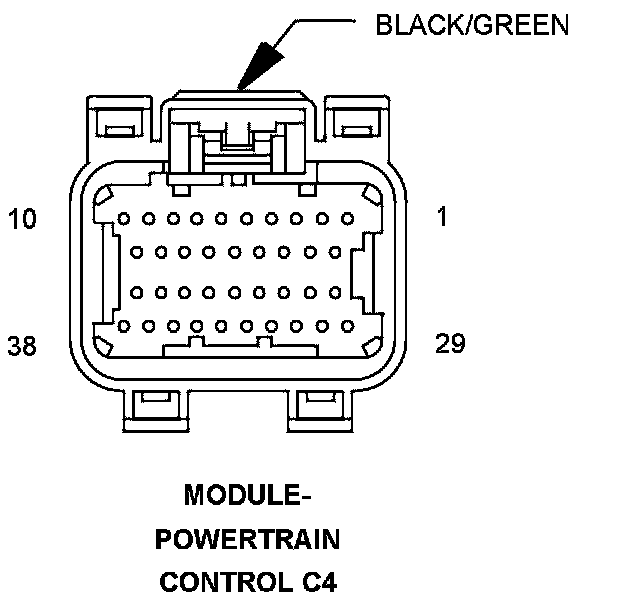

Name : MODULE-POWERTRAIN CONTROL C4
Color : BLACK/GREEN
# of pins : 38
Pin Description Circuit
1 OD CONTROL T60 18YL/GY
2 UD CONTROL T59 18YL/LB
3 EMCC VFS CONTROL T84 18DG/TN
4 DC CONTROL T82 18DG/OR
5 DC PRESSURE SIGNAL T83 18DG/GY
6 2/4 CONTROL T19 18DB/YL
6 2/4-L/R CONTROL T19 18DB/YL
7 - -
8 LC CONTROL T80 18DG/YL
9 - -
10 L/R CONTROL T20 18WT/DG
11 LP VFS CONTROL T118 18DG
12 GROUND Z133 16BK/LG
13 GROUND Z133 16BK/LG
14 GROUND Z133 16BK/LG
15 TRS T1 SIGNAL T1 18LB/DG
16 TRS T3 SIGNAL T3 18DG/DB
17 - -
18 TRANSMISSION CONTROL T15 18YL/BR
19 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
20 - -
21 LC PRESSURE SIGNAL T81 18DG/LB
22 OD PRESSURE SIGNAL T9 18DG/TN
23 - -
24 TRANSFER SPEED SIGNAL T85 18DG/LG
25 - -
26 - -
27 TRS T41 SIGNAL T41 18YL/DB
28 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
29 L/R PRESSURE SIGNAL T50 18YL/TN
30 2/4 PRESSURE SIGNAL T47 18YL/DG
31 LINE PRESSURE SIGNAL T38 18YL/BR
32 OUTPUT SPEED SIGNAL T14 18DG/BR
33 INPUT SPEED SIGNAL T52 18DG/WT
34 SENSOR GROUND T13 18DG/VT
35 TRANSMISSION TEMPERATURE SIGNAL T54 18DG/OR
36 - -
37 TRS T42 SIGNAL T42 18DG/YL
38 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
Component Location - 6
3.8L:
Component Location - 9
4.0L:
