Module-Door-Driver
Component ID: 180
Component : MODULE-DOOR-DRIVER
Connector:

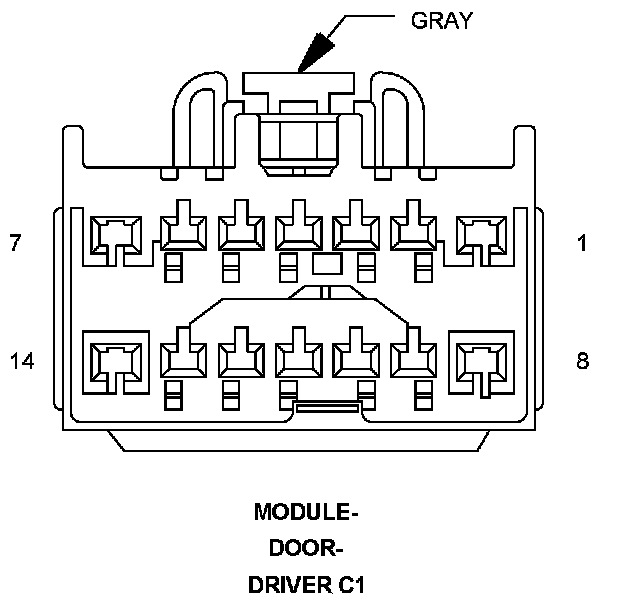

Name : MODULE-DOOR-DRIVER C1
Color : GRAY
# of pins : 14
Pin Description Circuit
1 FUSED DOOR NODE RELAY OUTPUT F516 12PK
2 FUSED B(+) A215 18RD/LG
3 DRIVER DOOR LOCK DRIVER P3 20TN/WT
4 DRIVER DOOR UNLOCK DRIVER P1 20TN/LG
5 DRIVER REAR WINDOW DRIVER (DOWN) Q211 14TN/LB
6 DRIVER REAR WINDOW DRIVER (UP) Q111 14TN/YL
7 - -
8 GROUND Z821 12BK/BR
9 GROUND G983 20VT/OR
10 FLASH PROGRAM ENABLE D123 20WT/BR
11 LIN BUS D500 20WT
12 - -
13 - -
14 - -

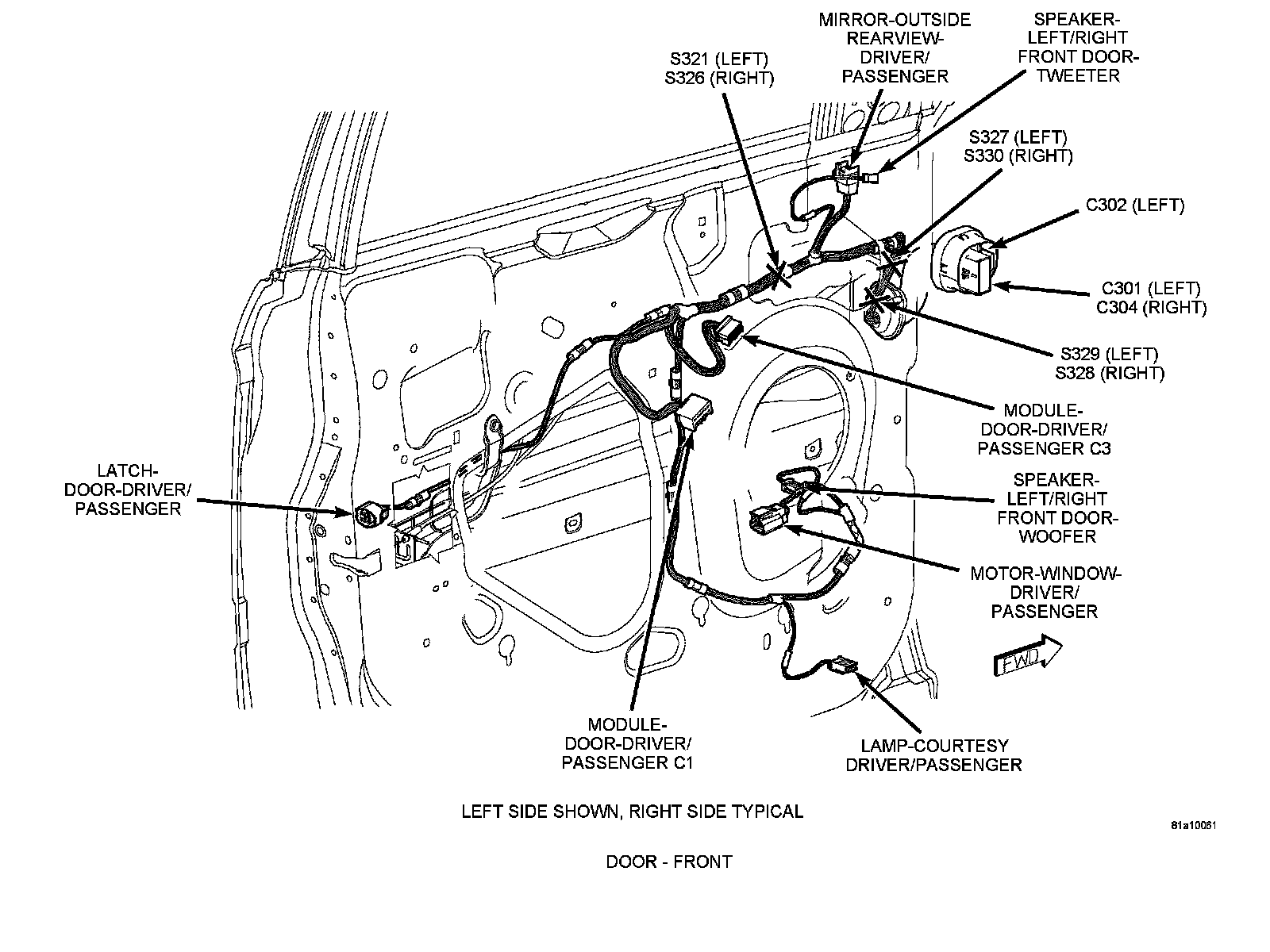

Component Location - 41
Component Location - 42
Connector:

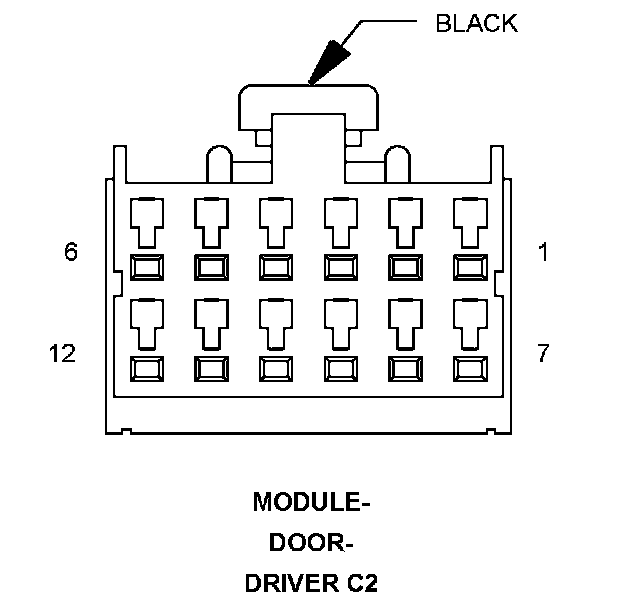

Name : MODULE-DOOR-DRIVER C2
Color : BLACK
# of pins : 12
Pin Description Circuit
1 MEMORY SET SWITCH INDICATOR DRIVER P101 20LG/WT
2 DRIVER HEATED SEAT HIGH INDICATOR DRIVER P83 20TN/WT
3 DRIVER HEATED SEAT LOW INDICATOR DRIVER P81 20TN/LB
4 SEAT SWITCH MUX RETURN P989 20TN/LG
5 ILLUMINATION GROUND Z301 20TN/BK
6 DRIVER DOOR SWITCH ILLUMINATION DRIVER P301 20LG/OR
7 DRIVER SEAT RECLINER/LUMBAR OUT SWITCH MUX P311 20LG/VT
8 DRIVER SEAT HORIZONTAL/LUMBAR IN SWITCH MUX P309 20LG/VT
9 DRIVER SEAT FRONT RISER/PEDAL FORWARD SWITCH MUX P200 20LG/YL
10 DRIVER HEATED SEAT SWITCH MUX P7 20LG/DG
11 MEMORY SELECT SWITCH MUX G200 20VT/BR
12 DRIVER SEAT REAR RISER/PEDAL BACK SWITCH MUX P202 20LG/DB
Component Location - 41
Component Location - 42
Connector:

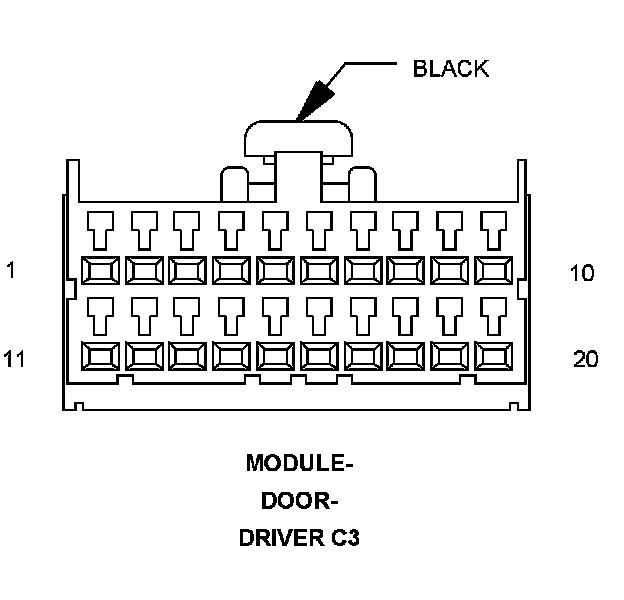

Name : MODULE-DOOR-DRIVER C3
Color : BLACK
# of pins : 20
Pin Description Circuit
1 GROUND Z75 20BK/VT
2 DRIVER MIRROR HORIZONTAL POSITION SIGNAL P65 22VT/TN
3 DRIVER MIRROR SENSOR SUPPLY P669 22OR/LG
4 - -
5 DRIVER REAR WINDOW SWITCH MUX Q1 20OR/WT
6 DRIVER MIRROR SENSOR GROUND P69 22WT/TN
7 LEFT DOOR COURTESY LAMP DRIVER M43 20OR/LB
8 PANEL LAMPS DRIVER E25 20OR/GY
9 DRIVER MIRROR COMMON DRIVER P73 22TN/VT
10 DRIVER MIRROR HORIZONTAL DRIVER P75 22TN/LG
11 DRIVER DOOR AJAR SWITCH SENSE G75 20VT
12 DRIVER MIRROR VERTICAL POSITION SIGNAL P67 22OR/TN
13 - -
14 DRIVER HEATED MIRROR FEED C17 20LB/WT
15 PCI BUS D25 20WT/VT
16 - -
17 GROUND Z321 20BK/BR
18 DRIVER HEATED MIRROR DRIVER P53 20LG/OR
19 - -
20 DRIVER MIRROR VERTICAL DRIVER P71 22TN/DG
Component Location - 41
Component Location - 42
