Lamp-Reading/Courtesy-Left Middle

Component ID: 155
Component : LAMP-READING/COURTESY-LEFT MIDDLE

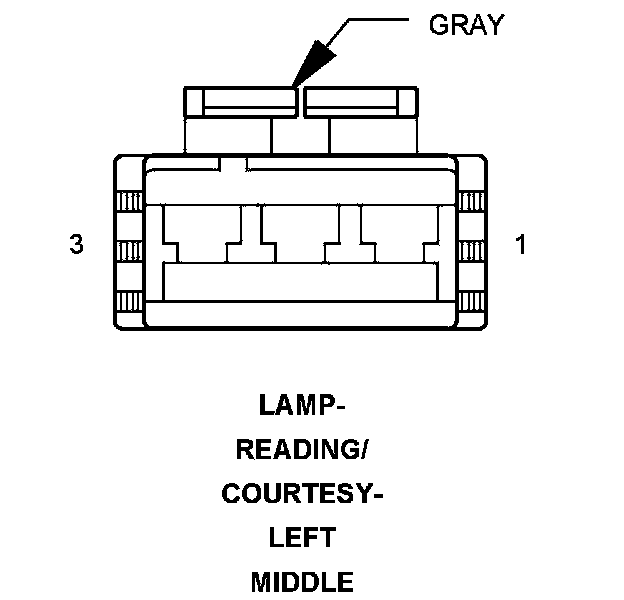

Connector:
Name : LAMP-READING/COURTESY-LEFT MIDDLE
Color : GRAY
# of pins : 3




Pin Description Circuit
1 COURTESY LAMPS DRIVER M22 18YL/OR
2 GROUND Z327 18BK/WT
3 RAIL LAMPS DRIVER M27 18YL/LB

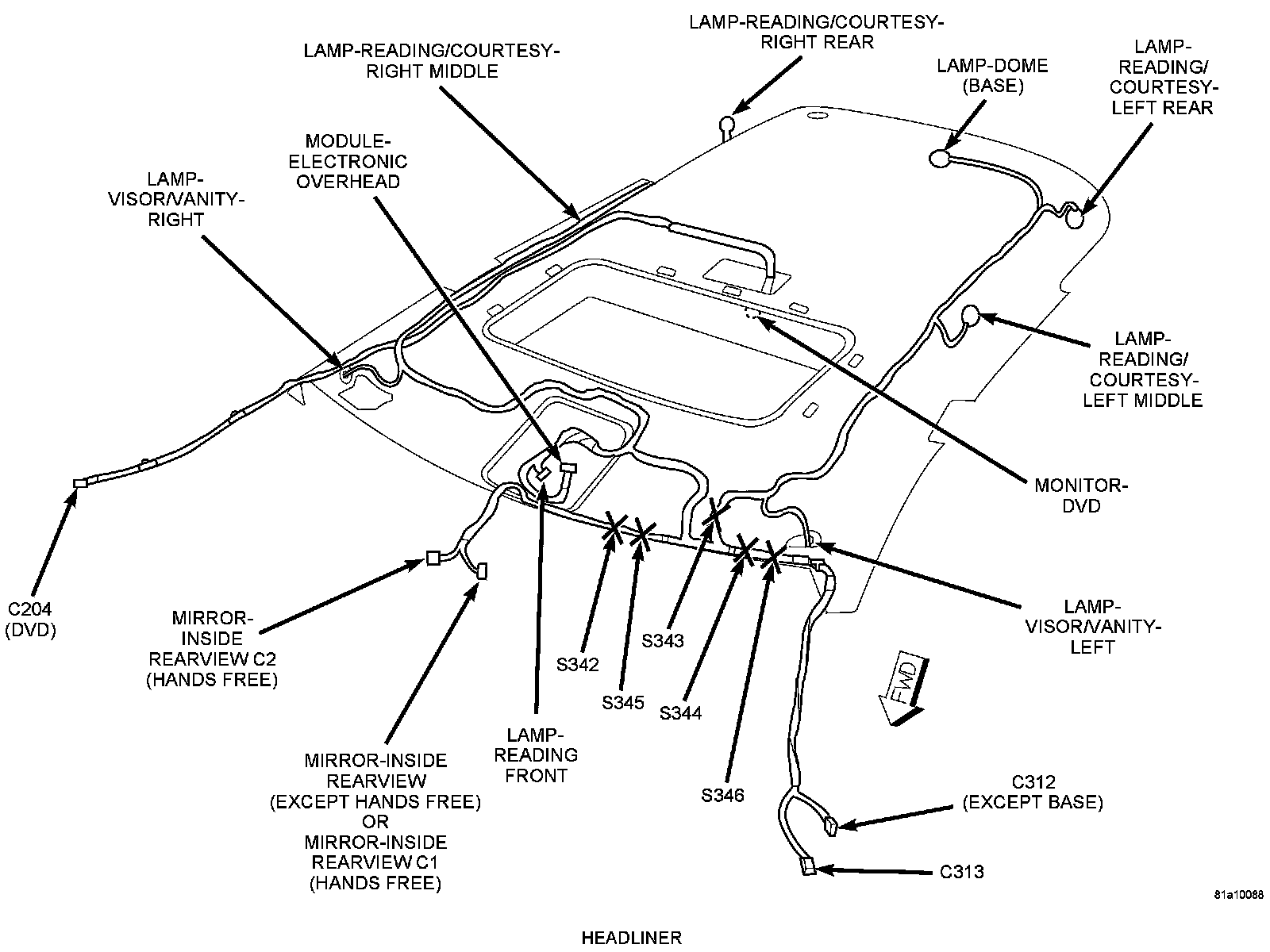

Component Location - 44
