Coolant Temperature Sensor/Switch (For Computer)

Component ID: 356
Component : SENSOR-ENGINE COOLANT TEMPERATURE

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2




Pin Description Circuit
1 SENSOR GROUND K900 20DB/DG
2 ECT SIGNAL K2 18VT/OR

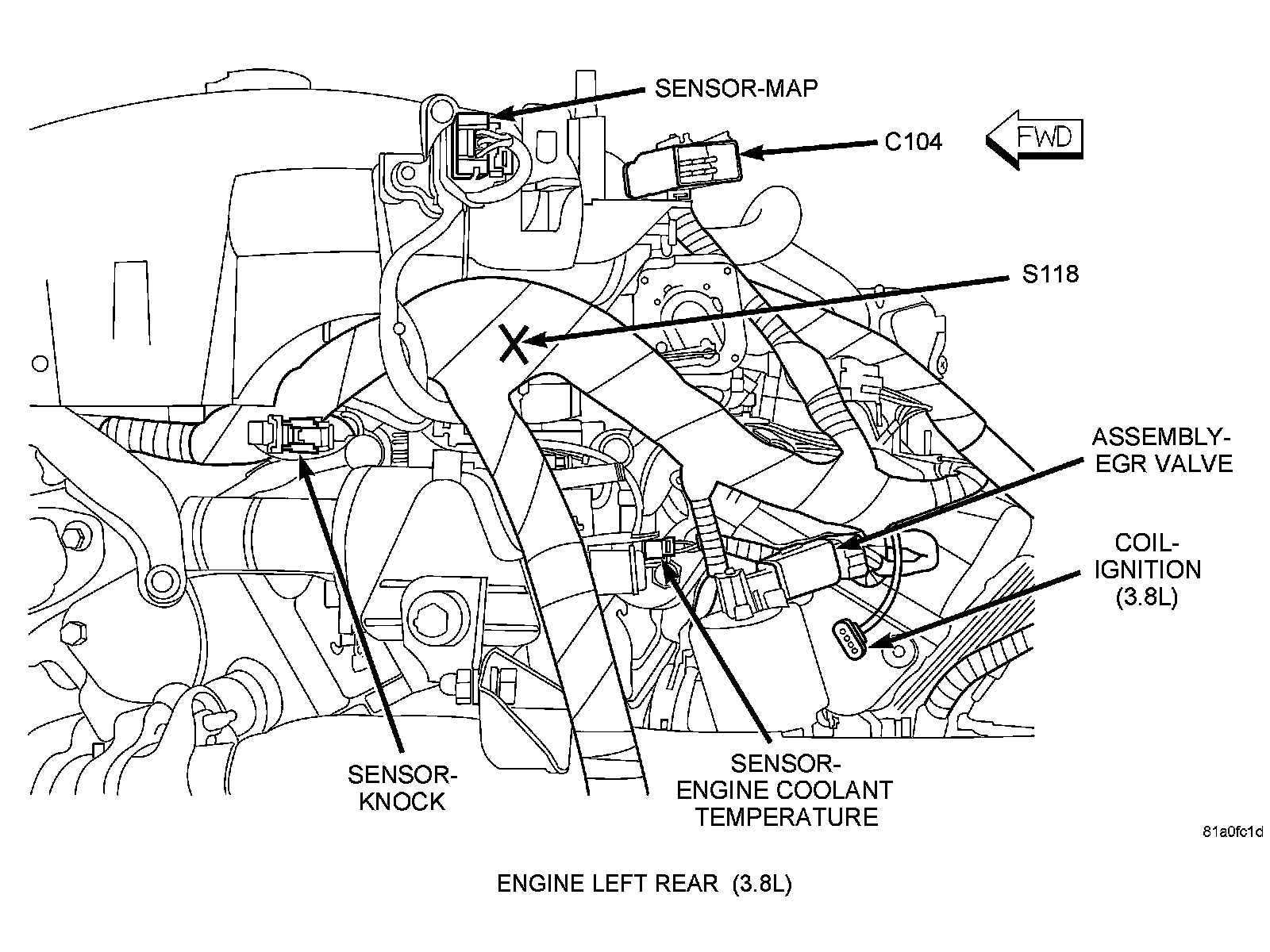

Component Location - 10
