Control Module, Transfer Case

Component ID: 174
Component : MODULE-ALL WHEEL DRIVE CONTROL

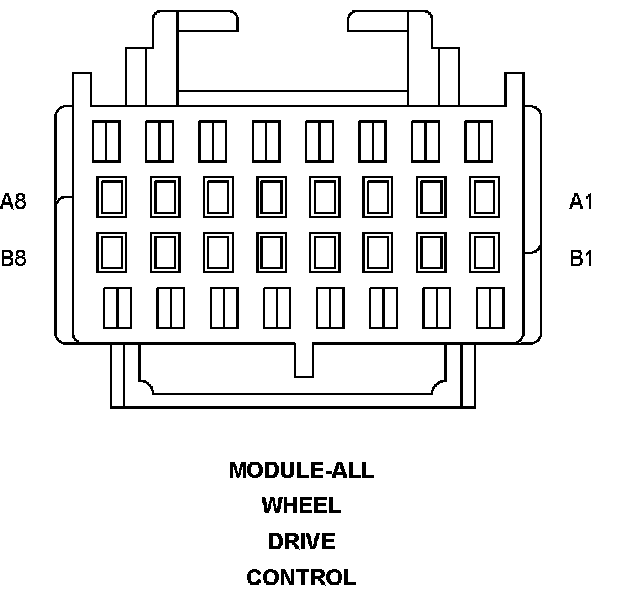

Connector:
Name : MODULE-ALL WHEEL DRIVE CONTROL
Color :
# of pins : 16




A1 FUSED B(+) A923 18RD/LG
A2 - -
A3 GROUND Z967 18BK/LG
A4 - -
A5 - -
A6 - -
A7 - -
A8 SOLENOID SUPPLY VOLTAGE T78 18YL
B1 FUSED IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/GY
B2 - -
B3 - -
B4 CAN C BUS (+) D65 20WT/LG
B5 CAN C BUS (-) D64 20WT/LB
B6 - -
B7 - -
B8 REAR DIFFERENTIAL SOLENOID CONTROL T312 18YL/VT
