Module-Booster Fan Power-Rear

Component ID: 178
Component : MODULE-BOOSTER FAN POWER-REAR

Connector:

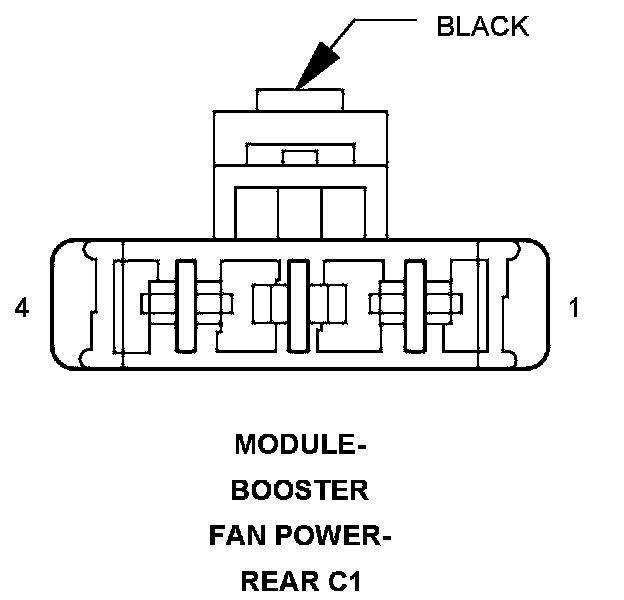

Name : MODULE-BOOSTER FAN POWER-REAR C1
Color : BLACK
# of pins : 4




Pin Description Circuit
1 - -
2 GROUND Z135 18BK/LB
3 REAR BOOSTER FAN CONTROL C57 20DB/LB
4 FUSED REAR BOOSTER FAN RELAY OUTPUT C51 18LB/BR

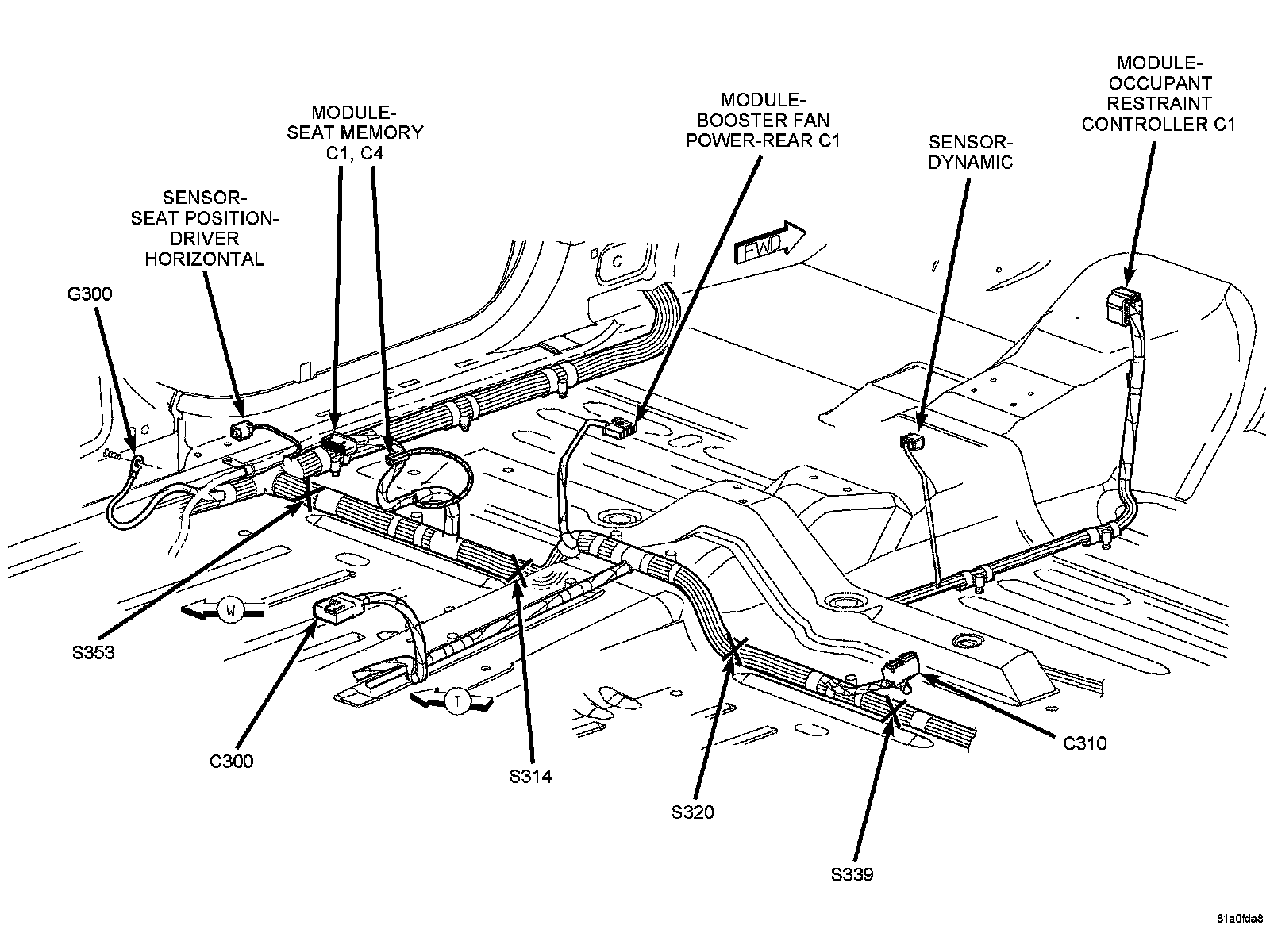

Component Location - 23

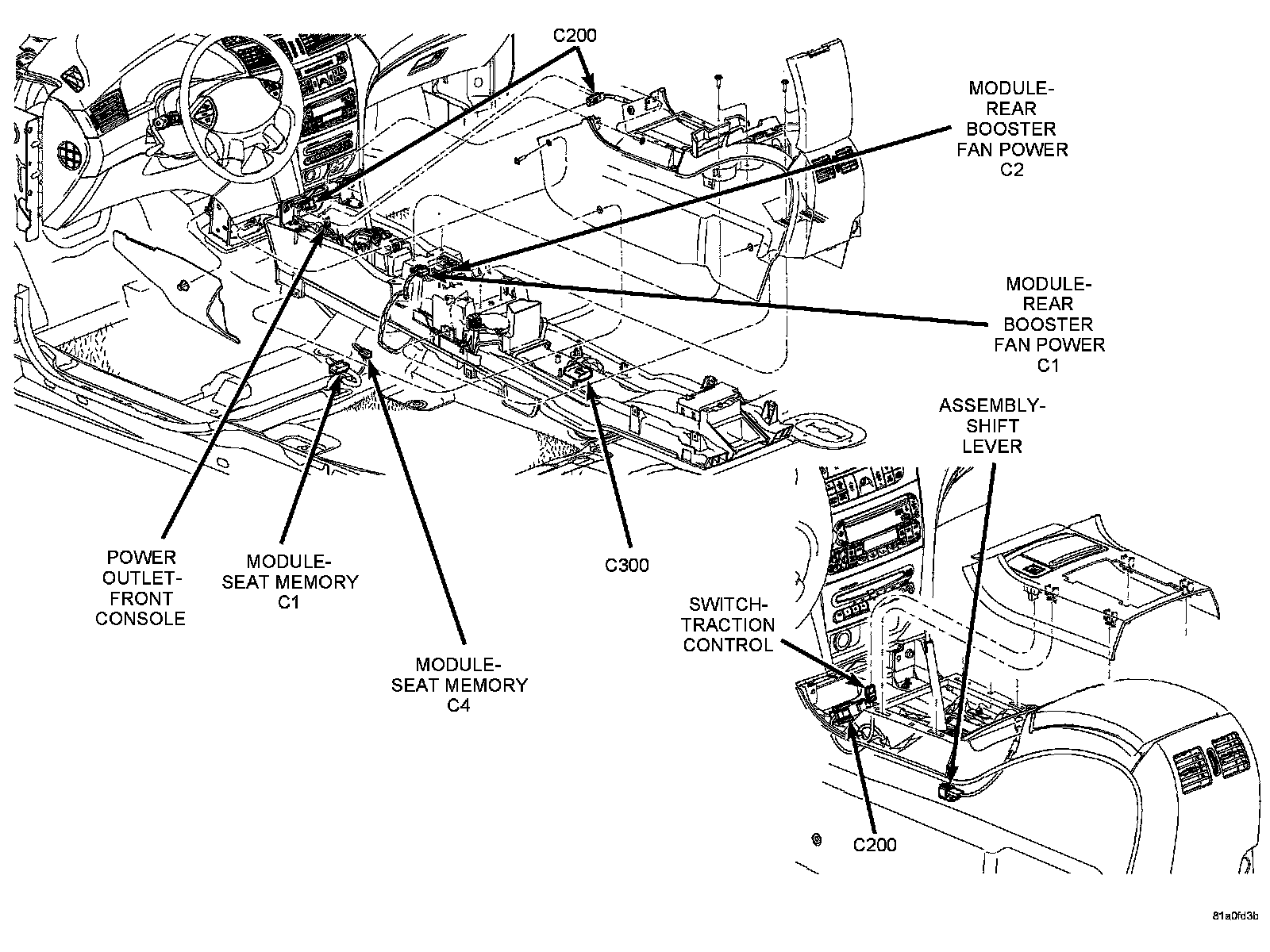

Component Location - 26






Connector:

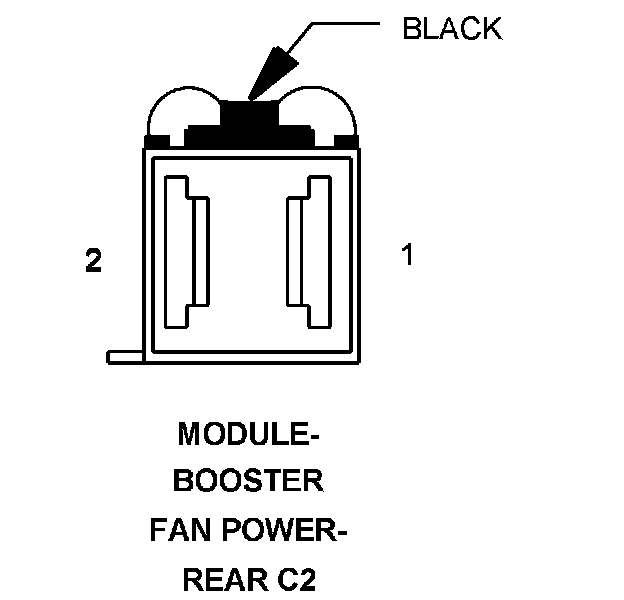

Name : MODULE-BOOSTER FAN POWER-REAR C2
Color : BLACK
# of pins : 2




Pin Description Circuit
1 BOOSTER FAN SUPPLY LG
2 BOOSTER FAN GROUND BK

Component Location - 23




Component Location - 26
