Switch-Control-A/C-Heater-Rear

Component ID: 403
Component : SWITCH-CONTROL-A/C-HEATER-REAR

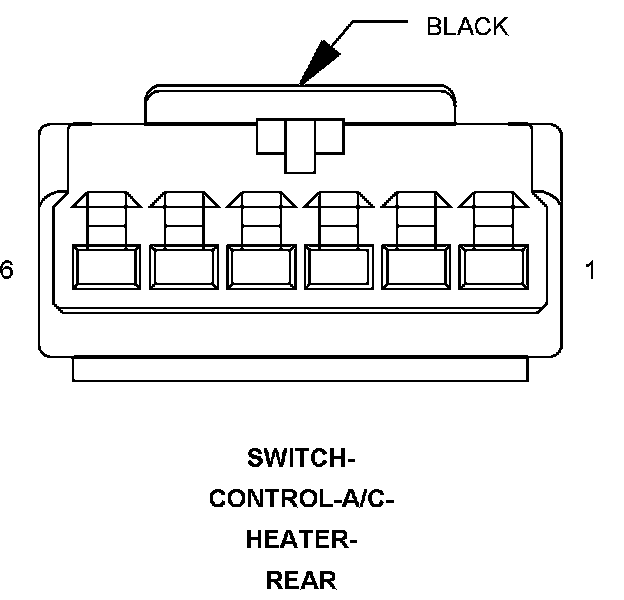

Connector:
Name : SWITCH-CONTROL-A/C-HEATER-REAR
Color : BLACK
# of pins : 6




Pin Description Circuit
1 PANEL LAMPS DRIVER E12 20OR/GY
2 REAR FAN SENSE C31 20LB/YL
3 REAR FAN SENSE SUPPLY C11 22LB/OR
4 REAR FAN ON INDICATOR DRIVER G21 22VT/WT
5 GROUND Z870 20BK/YL
6 REAR FAN SENSE RETURN C931 20DB/TN

Component Location - 24
