Power Outlet-Instrument Panel

Component ID: 218

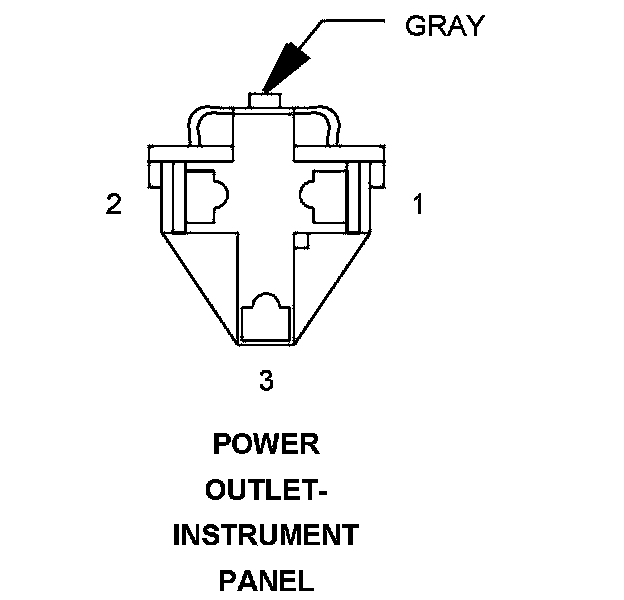

Component : POWER OUTLET-INSTRUMENT PANEL

Connector:
Name : POWER OUTLET-INSTRUMENT PANEL
Color : GRAY
# of pins : 3




Pin Description Circuit
1 FUSED B(+) A105 18DB/RD
2 - -
3 GROUND Z738 16BK/WT

Component Location - 14




Component Location - 17




Component Location - 19
