Power Outlet-Front Console

Component ID: 217

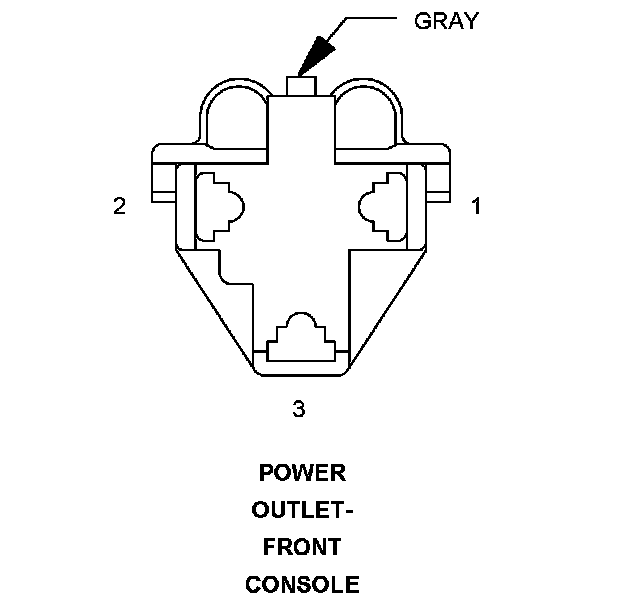

Component : POWER OUTLET-FRONT CONSOLE

Connector:
Name : POWER OUTLET-FRONT CONSOLE
Color : GRAY
# of pins : 3




Pin Description Circuit
1 FUSED ACCESSORY RELAY OUTPUT F306 16DB/PK
2 - -
3 GROUND Z746 16BK/DB

Component Location - 23
