Actuator-Blend Door-Passenger

Component ID: 2

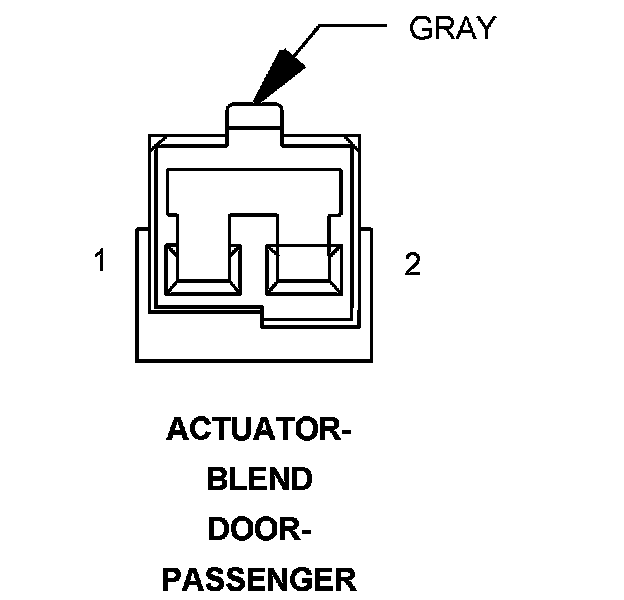

Component : ACTUATOR-BLEND DOOR-PASSENGER

Connector:
Name : ACTUATOR-BLEND DOOR-PASSENGER
Color : GRAY
# of pins : 2




Pin Description Circuit
1 PASSENGER BLEND DOOR DRIVER (A) C33 20LB/BR
2 PASSENGER BLEND DOOR DRIVER (B) C133 20DB/WT
2 COMMON DOOR DRIVER (B) C34 20DB/LB

Component Location - 20
