Module-Occupant Restraint Controller
Component ID: 190
Component : MODULE-OCCUPANT RESTRAINT CONTROLLER
Connector:

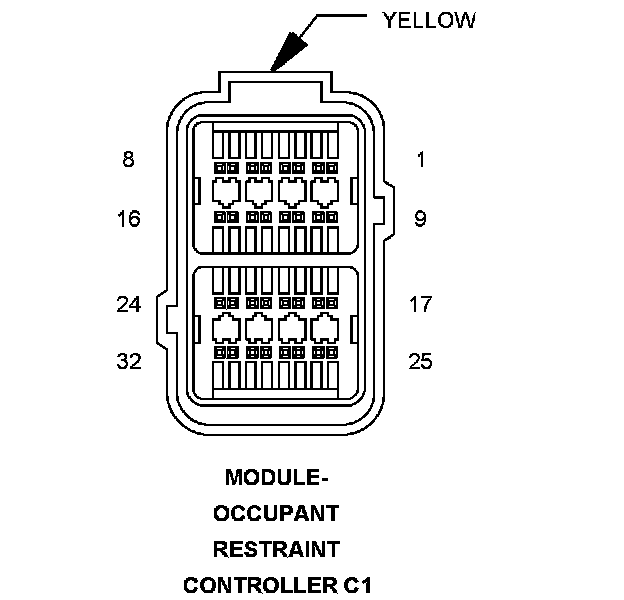

Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C1
Color : YELLOW
# of pins : 32
Pin Description Circuit
1 DRIVER SEAT BELT TENSIONER LINE 2 R53 18LG/YL
2 DRIVER SEAT BELT TENSIONER LINE 1 R55 18LG/DG
3 PASSENGER SEAT BELT TENSIONER LINE 1 R56 18LB/DG
4 PASSENGER SEAT BELT TENSIONER LINE 2 R54 18LB/YL
5 - -
6 - -
7 - -
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 - -
15 LEFT SIDE IMPACT SENSOR 1 SIGNAL R13 20LG/VT
16 RIGHT SIDE IMPACT SENSOR 1 GROUND R16 20BR/LG
17 - -
18 - -
19 LEFT SIDE IMPACT SENSOR 1 GROUND R15 20LG/BR
20 LEFT SIDE IMPACT SENSOR 2 GROUND R19 20LG/WT
21 RIGHT SIDE IMPACT SENSOR 2 GROUND R20 20WT/LG
22 LEFT SIDE IMPACT SENSOR 2 SIGNAL R17 20LG
23 RIGHT SIDE IMPACT SENSOR 2 SIGNAL R18 20LB
24 RIGHT SIDE IMPACT SENSOR 1 SIGNAL R14 20TN/LG
25 LEFT CURTAIN SQUIB LINE 2 R1 18LB/BR
26 LEFT CURTAIN SQUIB LINE 1 R3 18LB/OR
27 RIGHT CURTAIN SQUIB LINE 1 R4 18OR/LB
28 RIGHT CURTAIN SQUIB LINE 2 R2 18WT/LB
29 - -
30 - -
31 - -
32 - -

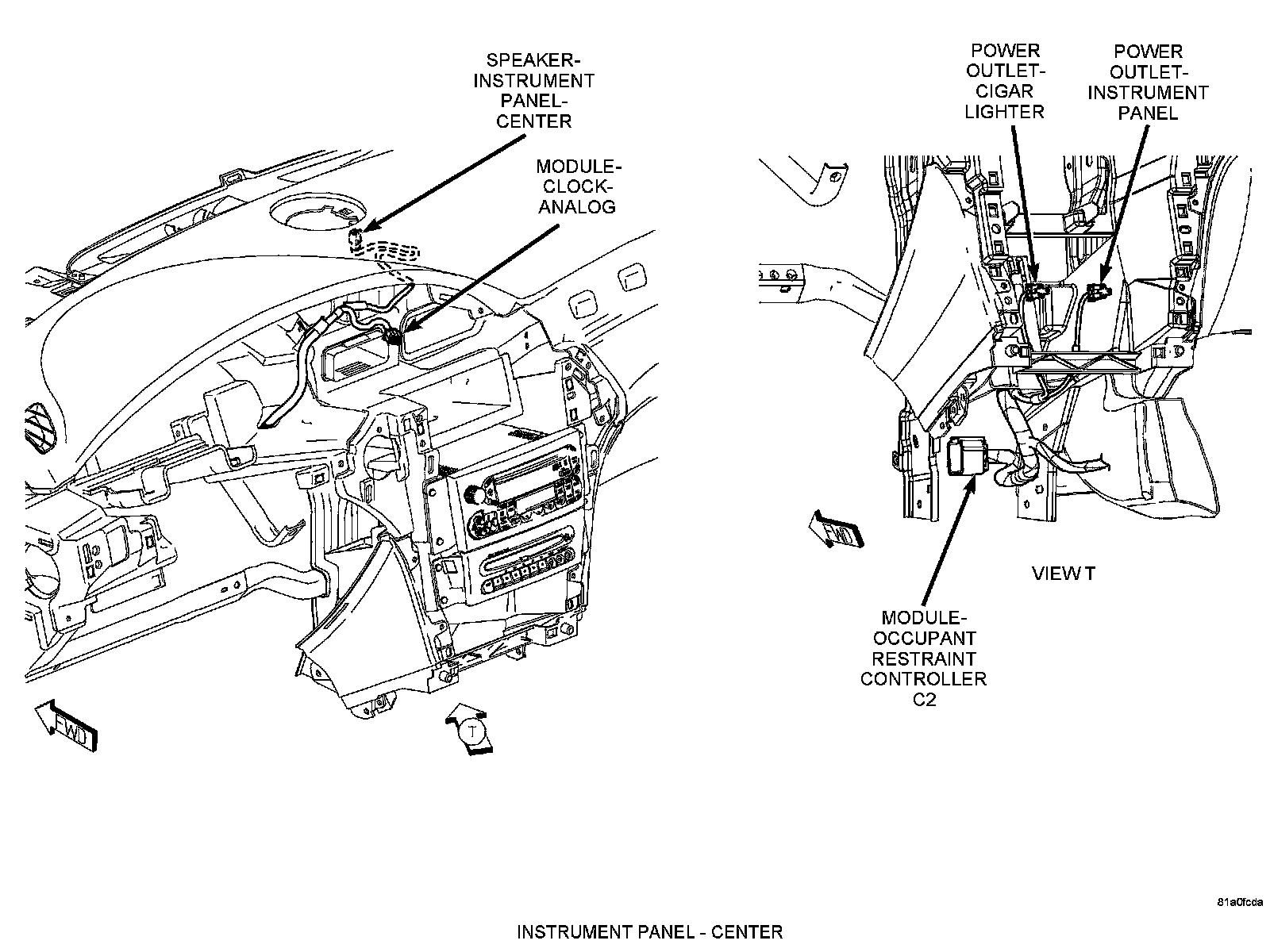

Component Location - 14
Component Location - 17
Component Location - 26
Connector:

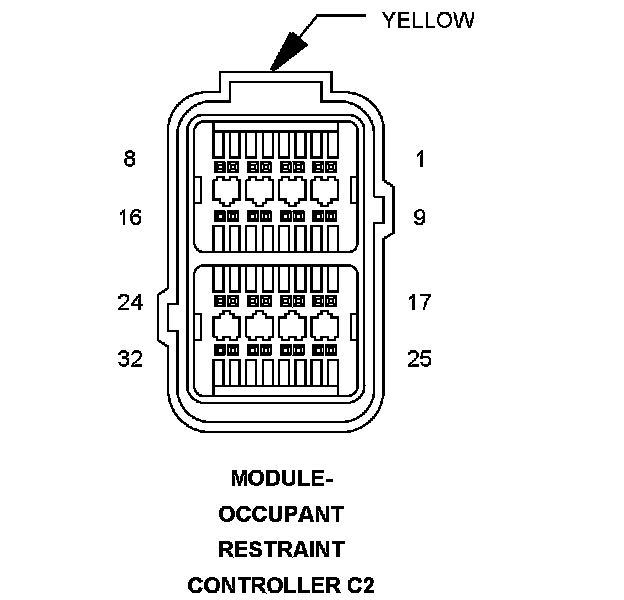

Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C2
Color : YELLOW
# of pins : 32
Pin Description Circuit
1 DRIVER SQUIB 1 LINE 2 R43 18LG/BR
2 DRIVER SQUIB 1 LINE 1 R45 18LG/OR
3 DRIVER SQUIB 2 LINE 1 R63 18LG/WT
4 DRIVER SQUIB 2 LINE 2 R61 18LG/VT
5 PASSENGER SQUIB 1 LINE 2 R42 18LB/BR
6 PASSENGER SQUIB 1 LINE 1 R44 18LB/OR
7 PASSENGER SQUIB 2 LINE 1 R64 18LB/TN
8 PASSENGER SQUIB 2 LINE 2 R62 18LG/DB
9 PASSENGER AIRBAG INDICATOR DRIVER G104 20VT/GY
10 - -
11 - -
12 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/LB
13 - -
14 - -
15 CAN B BUS (+) D55 20WT/OR
16 ORC RUN-START DRIVER F201 20PK/LB
17 - -
18 - -
19 - -
20 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
21 - -
22 GROUND Z12 18BK/OR
23 CAN B BUS (-) D54 20WT
24 ORC RUN DRIVER F100 20PK/VT
25 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
26 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20LB/TN
27 - -
28 - -
29 - -
30 - -
31 DRIVER KNEE BLOCKER SQUIB LINE 1 R11 18DB/LB
32 DRIVER KNEE BLOCKER SQUIB LINE 2 R9 18LB/YL
Component Location - 14
Component Location - 17
Component Location - 26
