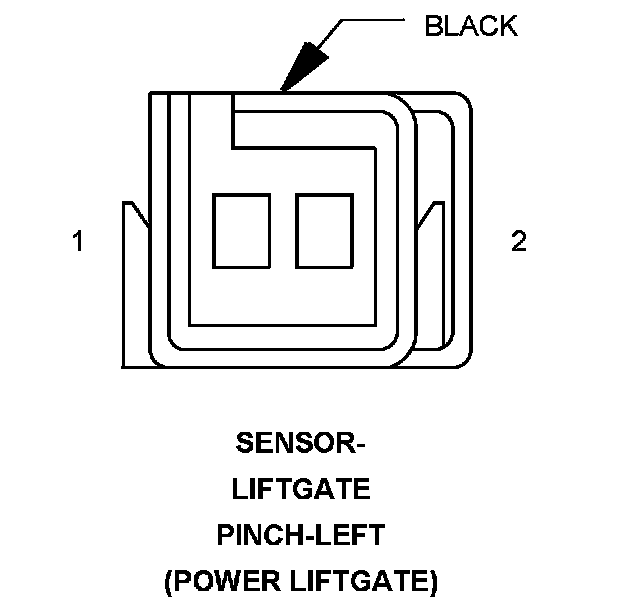

Sensor-Liftgate Pinch-Left

Component ID: 363
Component : SENSOR-LIFTGATE PINCH-LEFT

Connector:
Name : SENSOR-LIFTGATE PINCH-LEFT
Color : BLACK
# of pins : 2
Qualifier : (POWER LIFTGATE)




Pin Description Circuit
1 RIGHT PINCH SENSOR SIGNAL Q77 20OR/DB
2 LEFT PINCH SENSOR SIGNAL Q75 20OR/LB

Component Location - 45
