Third Row Outboard Link/Shield

THIRD ROW OUTBOARD LINK/SHIELD

REMOVAL

1. Open liftgate.
2. Remove rear floor stowage bin.
3. Remove third row seat.

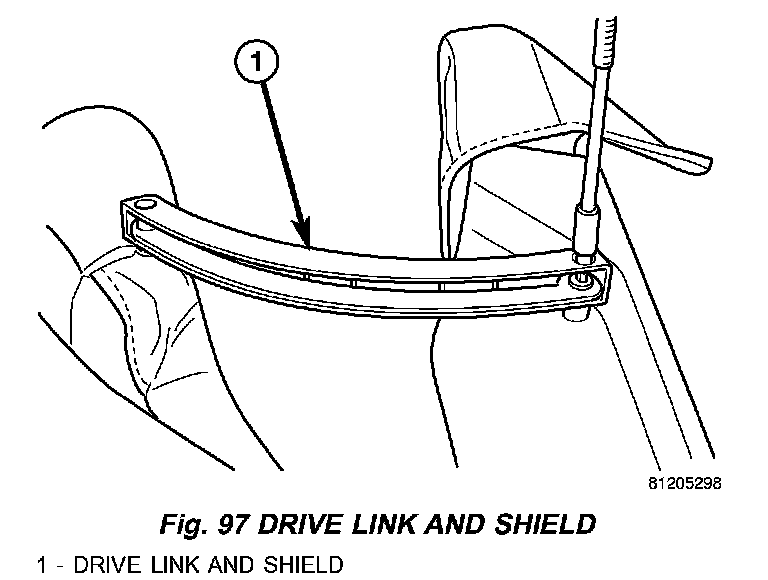

Fig. 97:

4. Remove two bolts (on outboard side of seat) attaching drive link assembly (Fig. 97).
5. Remove drive link and shield assembly.

INSTALLATION

1. Place drive link/shield assembly into position.
2. Install two bolts (on outboard side of seat) attaching drive link assembly (Fig. 58). Tighten to 10 N.m (7 ft.lbs.) torque.
3. Install third row seat.
4. Install rear floor stowage bin.
5. Close liftgate.
