Third Row Outboard Latch Assembly

THIRD ROW OUTBOARD LATCH ASSEMBLY

REMOVAL

1. Open liftgate.
2. Remove rear floor stowage bin.
3. Remove third row seat.

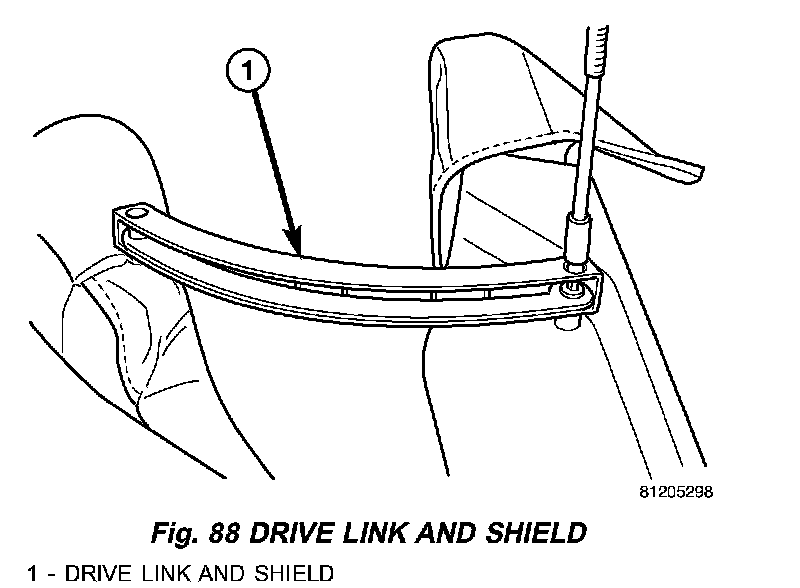

Fig. 88:

4. Remove two bolts (on outboard side of seat) attaching drive link assembly (Fig. 88).
5. Remove drive link assembly.

Fig. 89:

6. Remove outboard seat back shield (Fig. 89).

Fig. 90:

7. Disconnect fold flat cable from outboard fold flat mechanism (Fig. 90).

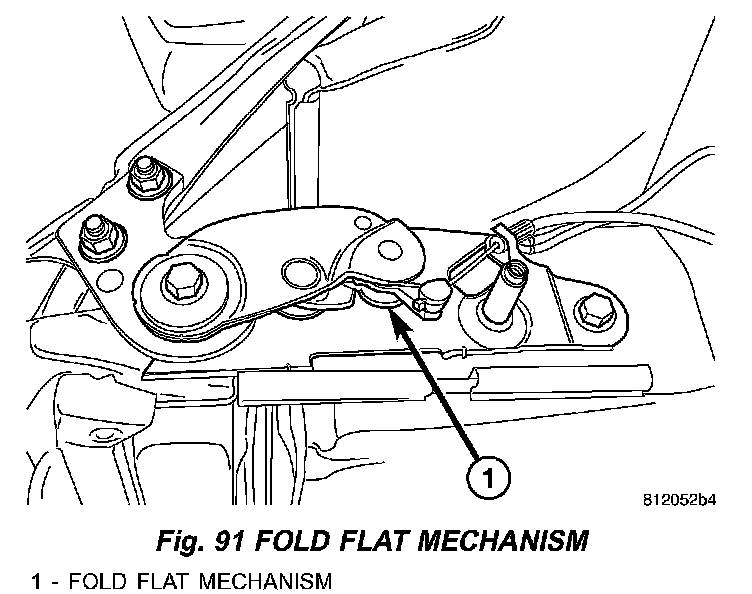

Fig. 91:

8. Remove two bolts attaching outboard fold flat mechanism to outer seat back. Remove two nuts attaching outboard fold flat mechanism to outboard riser (Fig. 91).
9. Remove outboard fold flat mechanism.

INSTALLATION

1. Place outboard fold flat mechanism into position.
2. Install two bolts attaching outboard fold flat mechanism to outer seat back. Install two nuts attaching outboard fold flat mechanism to outboard riser (Fig. 91).
3. Connect fold flat cable to outboard fold flat mechanism (Fig. 90).
4. Install outboard seat back shield (Fig. 89).
5. Place drive link assembly into position.
6. Install two bolts (on outboard side of seat) attaching drive link assembly (Fig. 88). Tighten to 10 N.m (7 ft.lbs.) torque.
7. Install third row seat.
8. Install rear floor stowage bin.
9. Close liftgate.
