Third Row Inboard Pivot

THIRD ROW INBOARD PIVOT

REMOVAL

1. Open liftgate.
2. Remove rear floor stowage bin.
3. Remove third row seat.

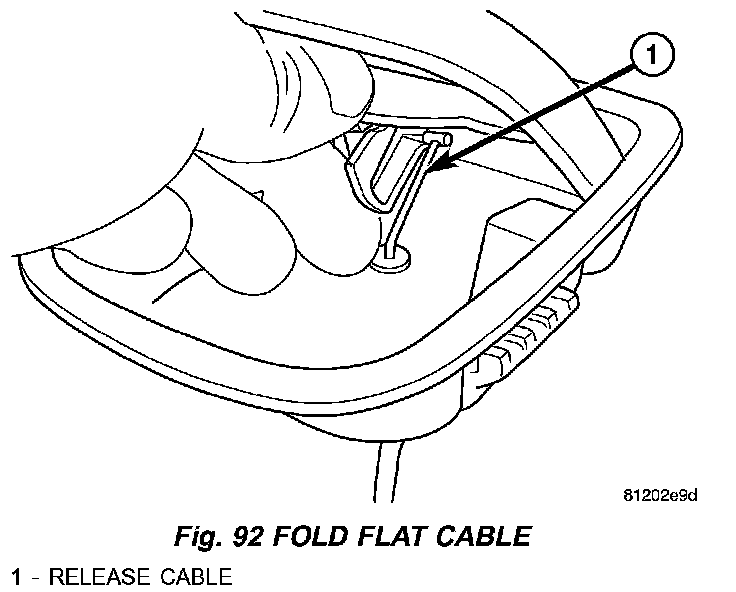

Fig. 92:

4. Using finger, disengage fold flat cable from handle (Fig. 92).

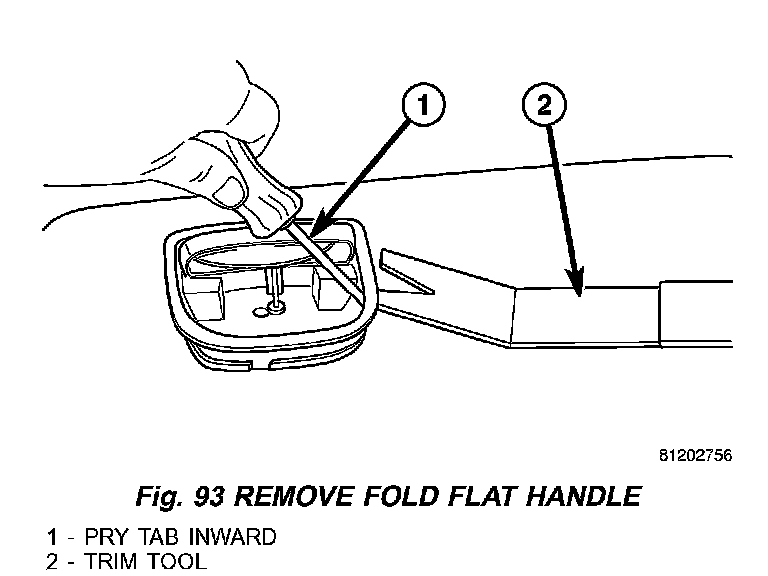

Fig. 93:

5. Release tab attaching fold flat handle to load floor panel (Fig. 93).
6. Disconnect fold flat cable from handle and remove handle.

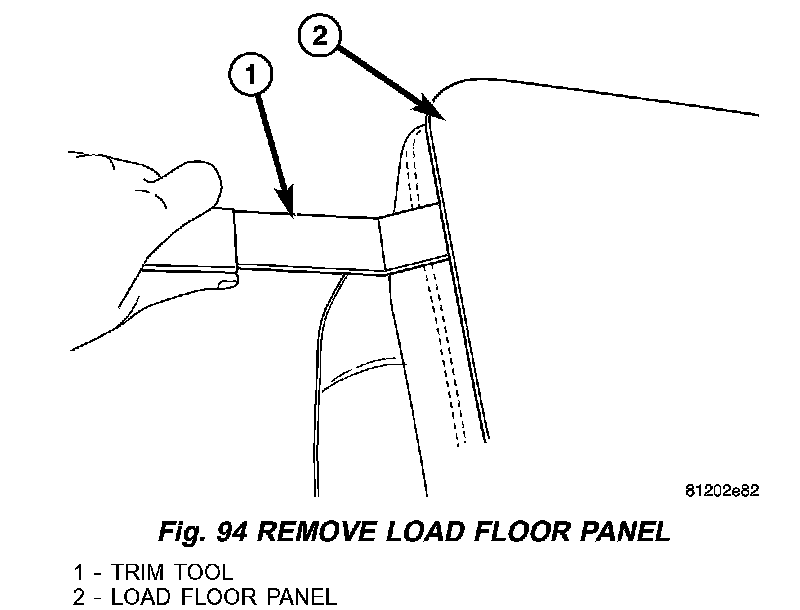

Fig. 94:

7. Remove load floor panel by using a trim tool and lifting up the edges to disengage the push pins (Fig. 94).

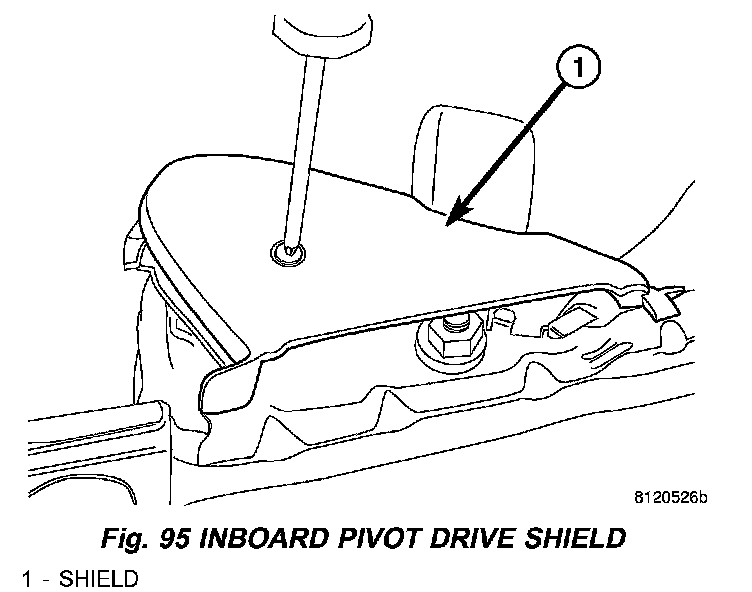

Fig. 95:

8. Remove inboard pivot drive shield screw (Fig. 95).

Fig. 96:

9. Disengage J-straps to uncover inboard pivot (Fig. 96).
10. Remove two bolts attaching inboard free pivot to inner seat back. Remove two nuts attaching inboard free pivot to inboard riser.
11. Remove inboard free pivot assembly.

INSTALLATION

1. Place inboard free pivot assembly into position (Fig. 92).
2. Install two bolts attaching inboard free pivot to inner seat back. Install two nuts attaching inboard free pivot to inboard riser.
3. Engage seat cover J-straps.
4. Install inboard pivot drive shield (Fig. 93).
5. Align load floor panel and push pins fasteners with holes in seat frame and press into position (Fig. 92).
6. Connect fold flat cable to handle and press handle into position on load floor panel.
7. Install third row seat.
8. Install rear floor stowage bin.
