Recliner Handle

RECLINER HANDLE

REMOVAL

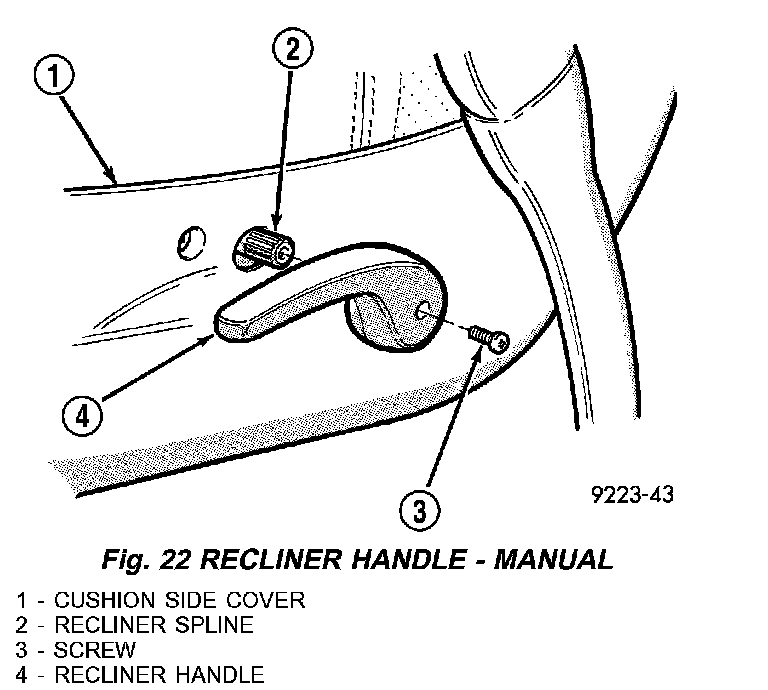

Fig. 22:

1. Remove screw holding recliner handle to recliner spline shaft (Fig. 22).
2. Remove recliner handle from spline shaft.

INSTALLATION

1. Place recliner handle in position on spline shaft.
2. Install screw to hold recliner handle to recliner spline shaft (Fig. 22).
