Front Seat Outer Trim Ring Panel

FRONT SEAT OUTER TRIM RING PANEL

REMOVAL

1. Remove front seat inner panel.

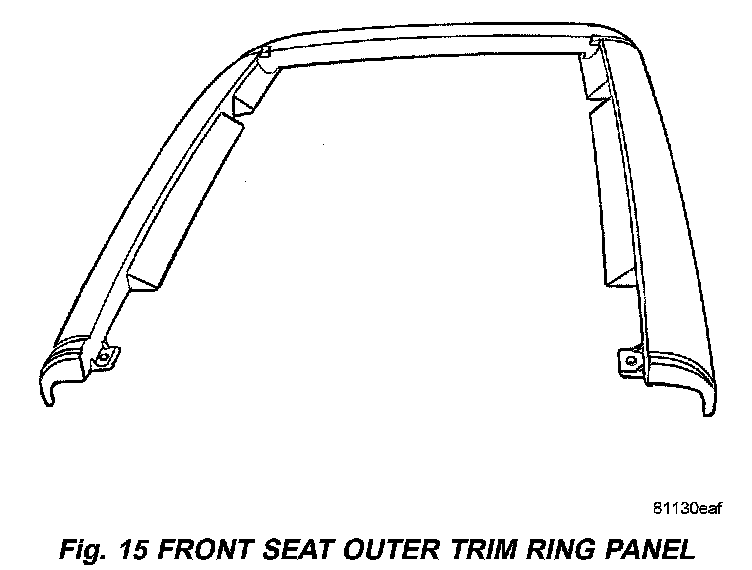

Fig. 15:

2. Remove front seat outer trim ring panel four attaching screws, if equipped (Fig. 15).
3. Remove outer trim ring panel from rear of seat.

INSTALLATION

1. Place seat outer trim ring panel into position on rear of seat.
2. Install seat outer trim ring panel four attaching screws, if equipped (Fig. 15).
3. Install front seat inner panel.
