Seat Temperature Control Module: Diagrams

Component ID: 186
Component : MODULE-HEATED SEATS

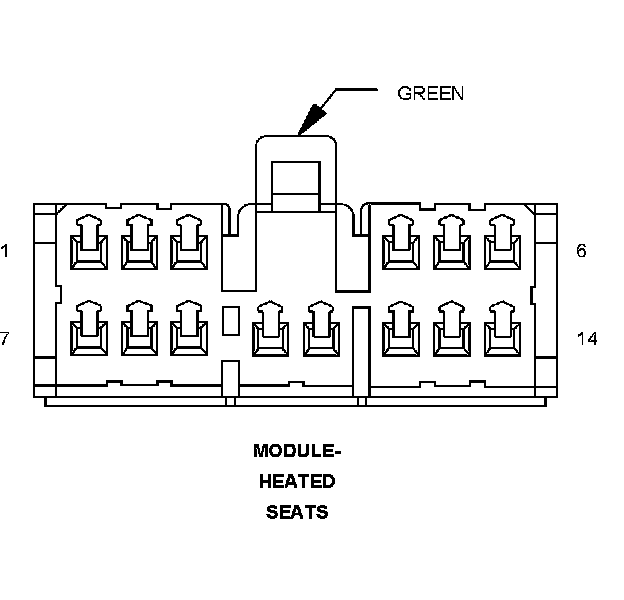

Connector:
Name : MODULE-HEATED SEATS
Color : GREEN
# of pins : 14




Pin Description Circuit
1 LEFT MIDDLE ROW SEAT SWITCH MUX P77 20LG
2 MIDDLE ROW SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY P189 20LG/WT
3 RIGHT MIDDLE ROW SEAT HEATER B(+) DRIVER P188 16LG/VT
4 FUSED RUN RELAY OUTPUT F525 16TN/PK
5 LEFT MIDDLE ROW SEAT HEATER B(+) DRIVER P187 16LG/BR
6 FUSED RUN RELAY OUTPUT F525 16TN/PK
7 RIGHT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT P196 20LG/LB
8 LEFT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT P197 20LG/DG
9 RIGHT MIDDLE ROW SEAT SWITCH MUX P96 20LB/LG
10 RIGHT MIDDLE ROW SEAT LOW INDICATOR DRIVER P182 20LG/OR
11 RIGHT MIDDLE ROW SEAT HIGH INDICATOR DRIVER P184 20LG/GY
12 LEFT MIDDLE ROW SEAT LOW INDICATOR DRIVER P181 20LG/DB
13 GROUND Z870 20BK/YL
14 LEFT MIDDLE ROW SEAT HIGH INDICATOR DRIVER P183 20LG/YL

Component Location - 24
