Power Door Lock Relay: Diagrams

Component ID: 229

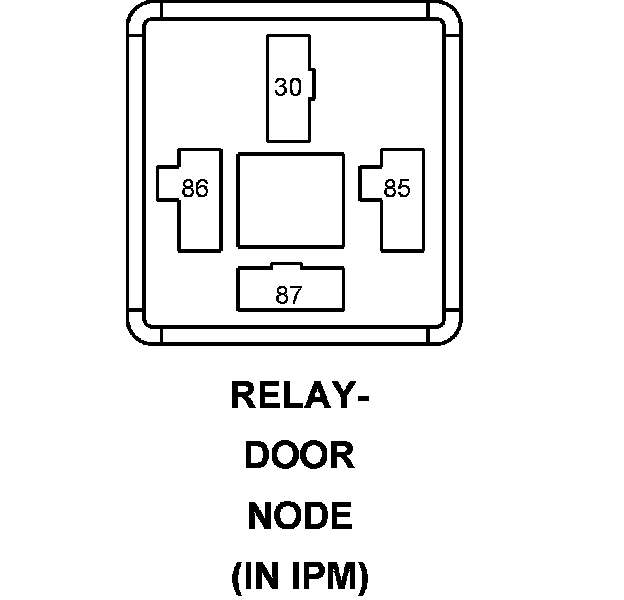

Component : RELAY-DOOR NODE

Connector:
Name : RELAY-DOOR NODE
Color :
# of pins : 0




30 B(+) INTERNAL
85 B(+) INTERNAL
86 DOOR NODE RELAY CONTROL INTERNAL
87 FUSED DOOR NODE RELAY OUTPUT INTERNAL
87A - -
