Radiator Crossmember - Removal

REMOVAL
1. Open hood.

2. Remove upper radiator closure panel.

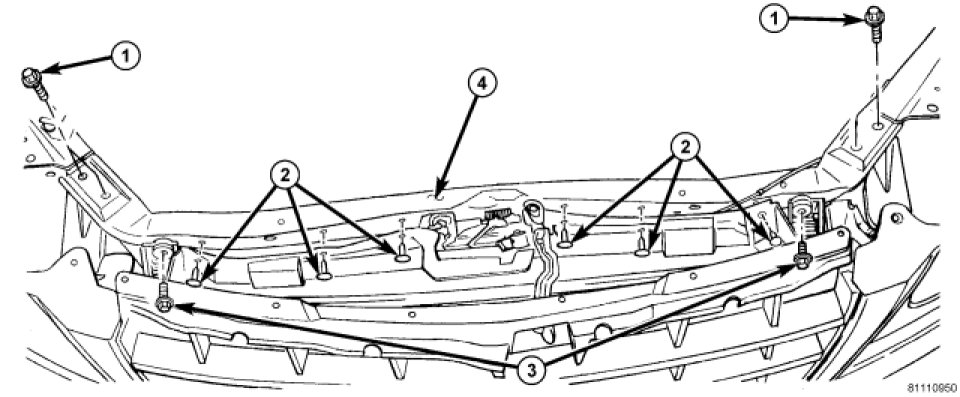

3. Remove push pin fasteners attaching the cooling upper seal to radiator crossmember .

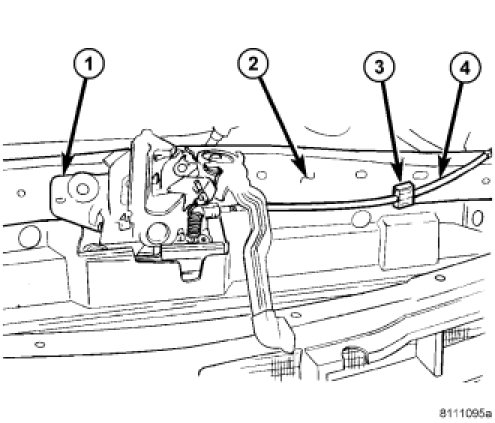

4. Remove screws attaching hood latch to radiator crossmember.

5. Disconnect the remote hood latch release cable clip.





6. Remove radiator two top attaching bolts to radiator crossmember.

7. Remove two bolts on each side of radiator crossmember.

8. Remove radiator crossmember from vehicle.
