Interior Rearview Mirror - Installation

INSTALLATION

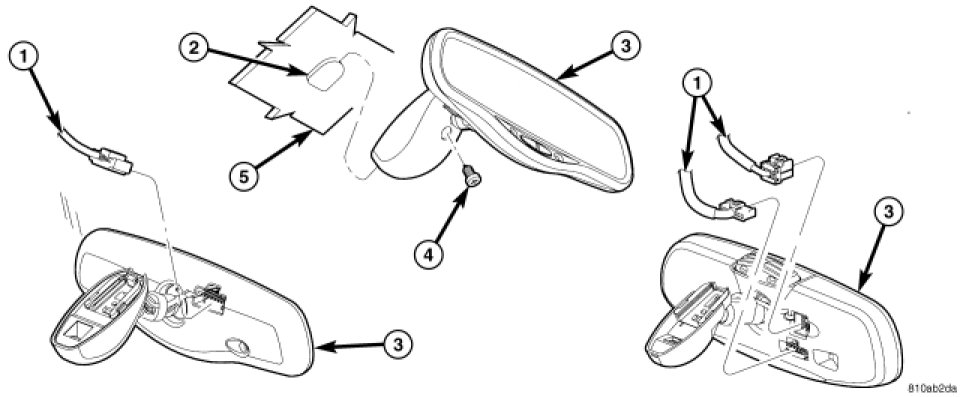

1. Position the mirror base at the support button and slide it downward onto the button.

2. Tighten the set screw 1 Nm (15 in. lbs.) torque.

3. If equipped, connect mirror wire connector(s).
