Latch-Door-Driver

Component ID: 166

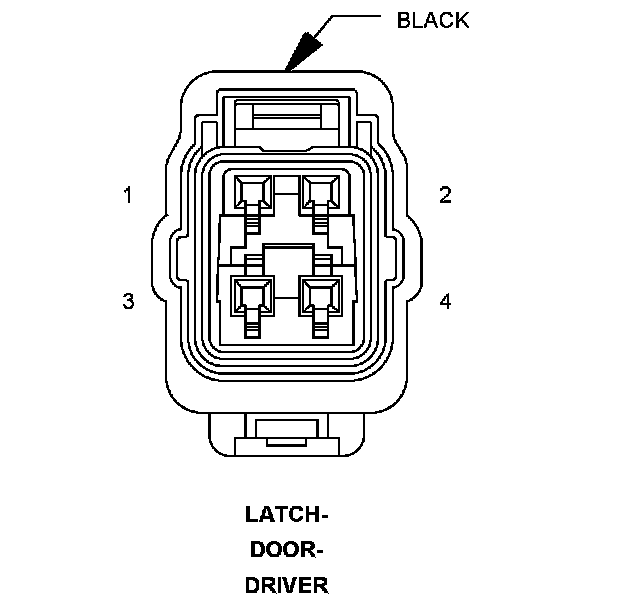

Component : LATCH-DOOR-DRIVER

Connector:
Name : LATCH-DOOR-DRIVER
Color : BLACK
# of pins : 4




Pin Description Circuit
1 DRIVER DOOR AJAR SWITCH SENSE G75 20VT
2 GROUND Z75 20BK/VT
3 DRIVER DOOR UNLOCK DRIVER P1 20TN/LG
4 DRIVER DOOR LOCK DRIVER P3 20TN/WT

Component Location - 41
