Latch-Door-Passenger Rear

Component ID: 170
Component : LATCH-DOOR-PASSENGER REAR

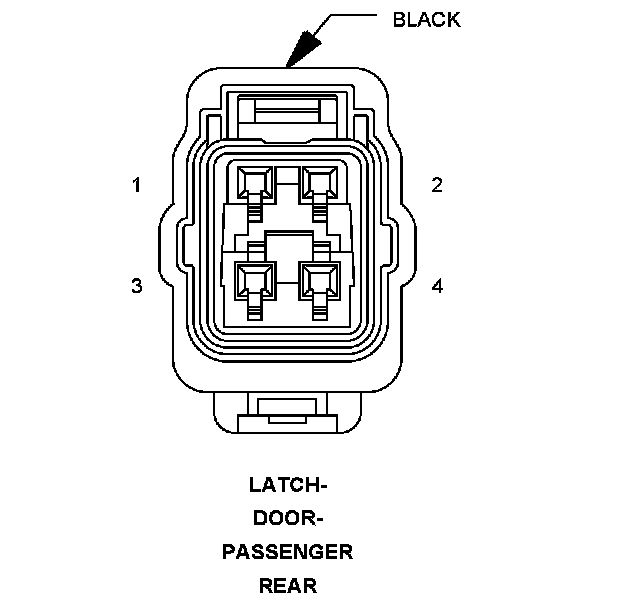

Connector:
Name : LATCH-DOOR-PASSENGER REAR
Color : BLACK
# of pins : 4




Pin Description Circuit
1 RIGHT REAR DOOR AJAR SWITCH SENSE G76 20VT/YL
2 GROUND G982 20VT/TN
3 DOOR UNLOCK DRIVER P292 18VT/LG
4 DOOR LOCK DRIVER P222 18VT/DG

Component Location - 43
