Latch-Door-Passenger

Component ID: 169

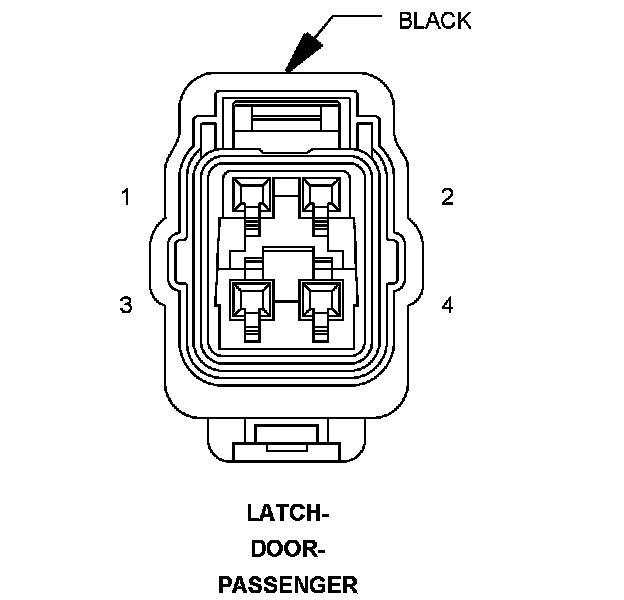

Component : LATCH-DOOR-PASSENGER

Connector:
Name : LATCH-DOOR-PASSENGER
Color : BLACK
# of pins : 4




Pin Description Circuit
1 PASSENGER DOOR AJAR SWITCH SENSE G74 20VT/WT
2 GROUND Z74 20BK/WT
3 DOOR UNLOCK DRIVER P292 20VT/LG
4 DOOR LOCK DRIVER P222 20VT/DG

Component Location - 41
