Latch-Door-Liftgate

Component ID: 168

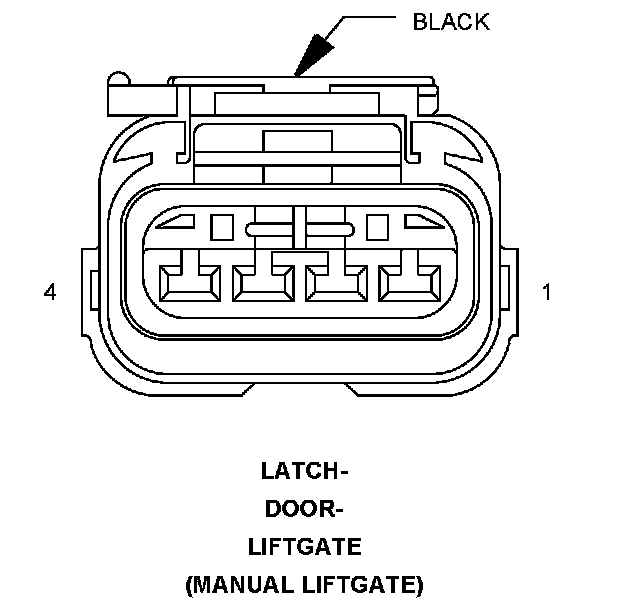

Component : LATCH-DOOR-LIFTGATE

Connector:
Name : LATCH-DOOR-LIFTGATE
Color : BLACK
# of pins : 4
Qualifier : (MANUAL LIFTGATE)




Pin Description Circuit
1 GROUND Z78 20BK/OR
2 LIFTGATE AJAR SWITCH SENSE G78 22VT/OR
3 LIFTGATE RELEASE DRIVER P31 18TN/YL
4 GROUND Z245 18BK/GY
