Latch-Door-Driver Rear

Component ID: 167

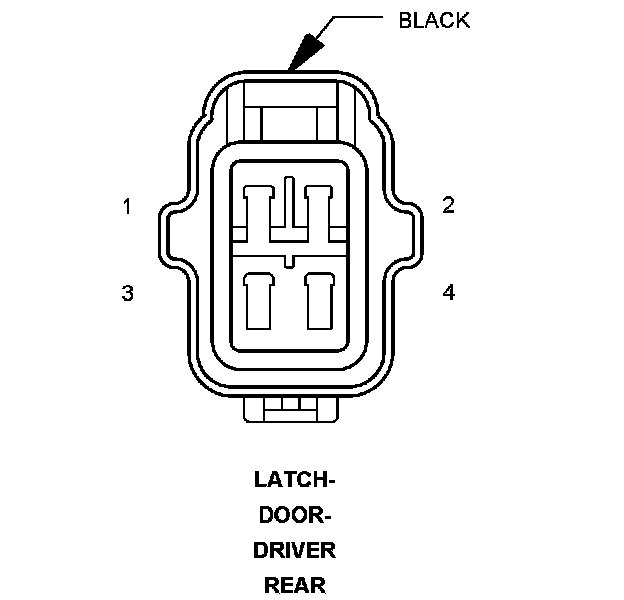

Component : LATCH-DOOR-DRIVER REAR

Connector:
Name : LATCH-DOOR-DRIVER REAR
Color : BLACK
# of pins : 4




Pin Description Circuit
1 LEFT REAR DOOR AJAR SWITCH SENSE G77 20VT/YL
2 GROUND G983 20VT/TN
3 DOOR UNLOCK DRIVER P292 18VT/LG
4 DOOR LOCK DRIVER P222 18VT/DG

Component Location - 43
