Installation

INSTALLATION

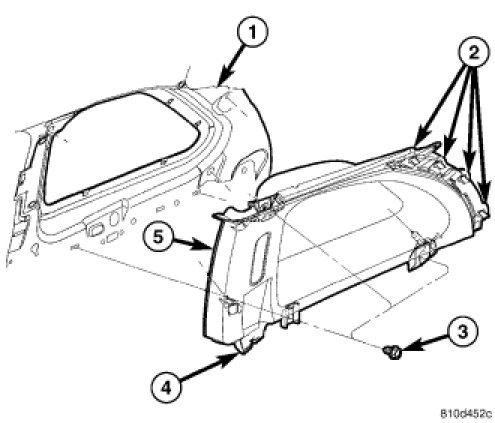

1. Place trim panel into position.

2. Align locator pins and press on C-pillar upper trim panel to engage the locking tabs.

3. Install screws attaching C-pillar upper trim panel to body side.

4. Place quarter trim bolster into position and press on bolster to engage the locating tabs.

5. Install lower D-pillar seat belt anchor.

6. Install D-pillar trim panel.

7. Install rear header trim.

8. Close rear door and liftgate.
