Installation

INSTALLATION

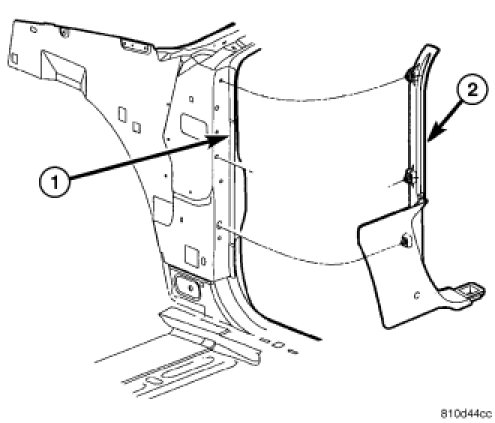

NOTE: Left hand shown, right side similar.

1. Place A-pillar cowl side trim panel in position.

2. Press on A-pillar trim to engage locking clips.

3. Install front door sill scuff plate.
