Installation

INSTALLATION

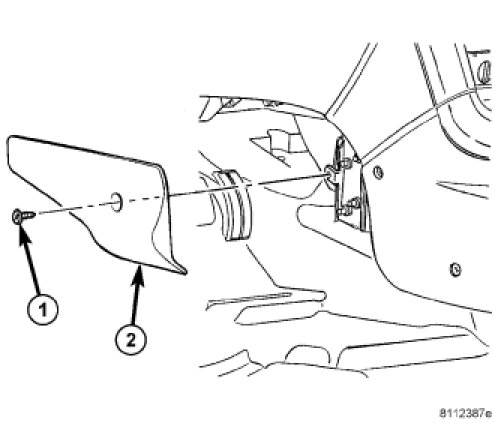

NOTE: Left hand shown, right side similar.

1. Place left and right center console closeout panels into position.

2. Install left and right attaching screws.
