Rear Floor Console

REAR FLOOR CONSOLE

REMOVAL

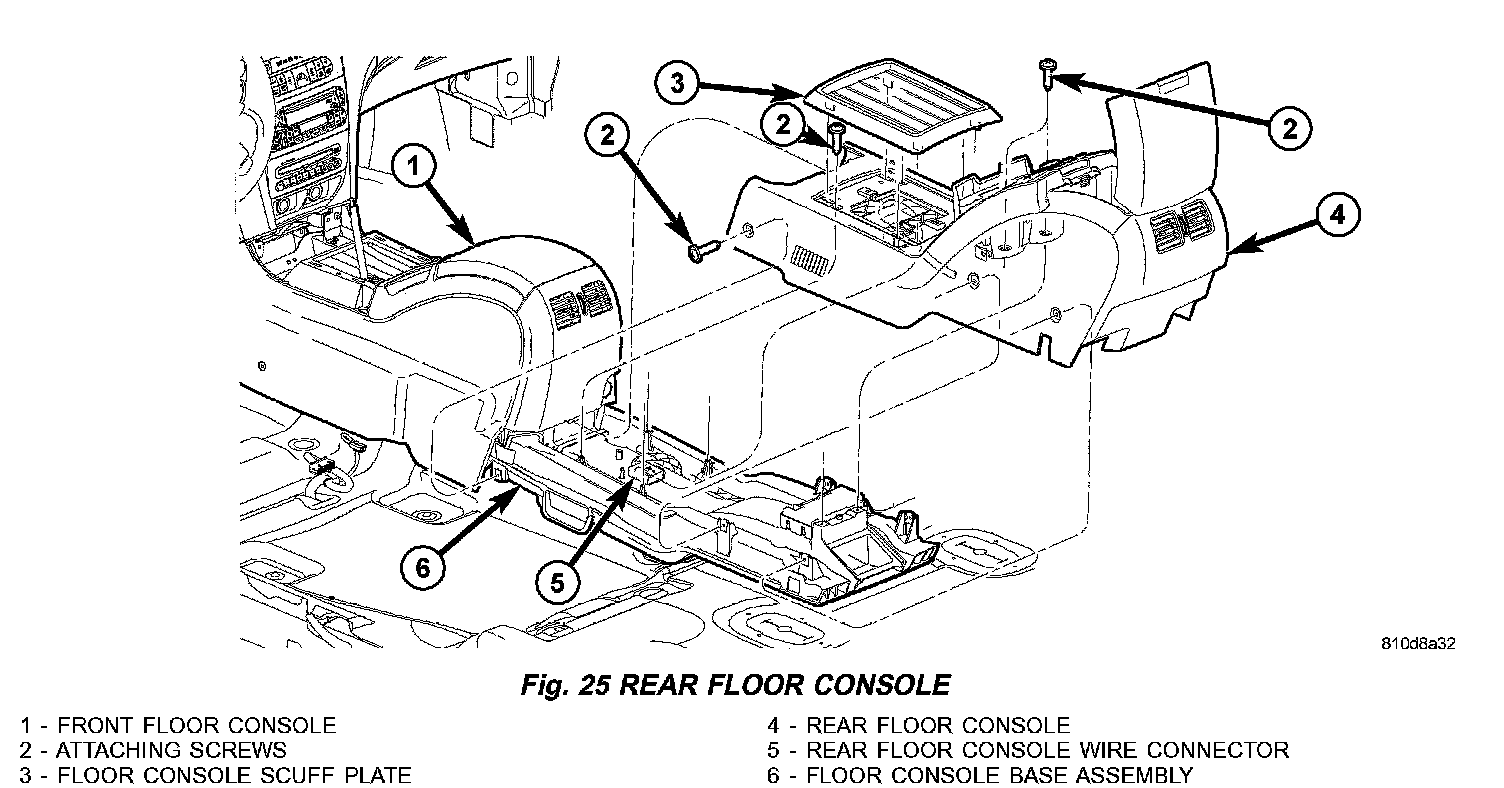

Fig. 25:

1. Using a trim stick C-4755 or equivalent, disengage the locking tabs and remove floor console scuff plate (Fig. 25).
2. Remove four attaching screw under scuff plate.
3. Open cup holder and remove two attaching screws on the bottom.
4. Remove sidewalls attaching screws, three per side.
5. Remove rear floor console from vehicle.

INSTALLATION

1. Place rear floor console into position (Fig. 25).
2. Install sidewalls attaching screws, three per side.
3. Instal two attaching screws in bottom of cup holder.
4. Install four attaching screw under scuff plate.
5. Place floor console scuff plate into position and press down to engage the locking tabs.
