Carpet: Service and Repair

CARPETS

REMOVAL

1. Remove front seats. .
2. Remove first row seats.
3. Remove second row seats.
4. Remove move shifter knob.
5. Remove front floor console shift bezel.
6. Remove front floor console.
7. Remove rear floor console.
8. Floor console base assembly.
9. Remove front and rear sill scuff plates. Refer to Trim Panel.
10. Remove cowl side trim panels. Refer to Trim Panel.
11. Remove the floor stowage bin.
12. Remove liftgate sill scuff plate. Refer to Trim Panel.
13. Remove B-pillar lower trim. Refer to Trim Panel.
14. Remove quarter trim panel. Refer to Trim Panel.

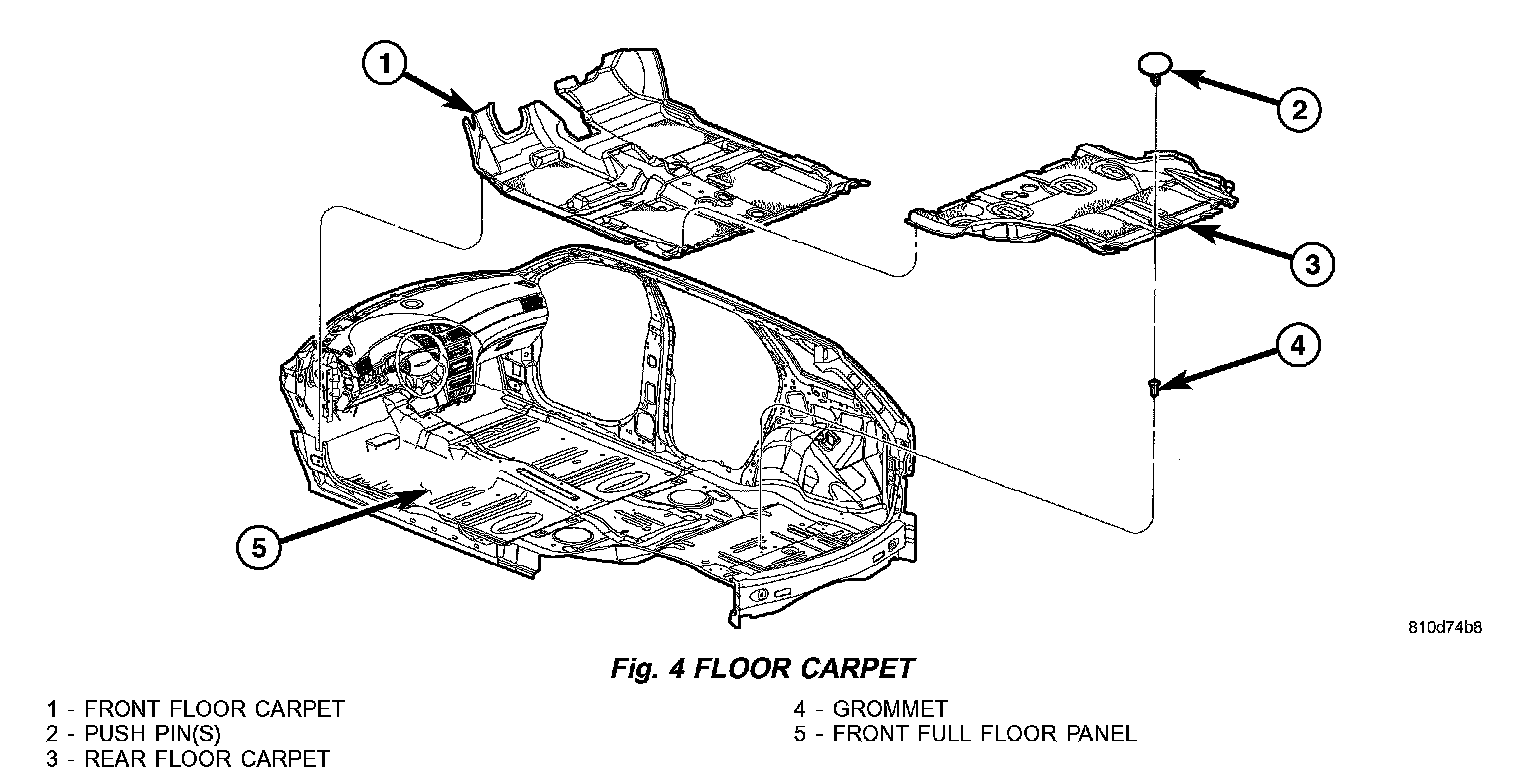

Fig. 4:

15. Remove fasteners attaching carpet to floor panel (Fig. 4).

CAUTION: Use care when pulling wires and connectors through the carpet.

16. Pull wire harnesses and connector through carpet.
17. Roll carpet from under instrument panel rearward to rear of vehicle and remove.
18. Rear floor carpet roll and fold carpet forward away from rear door opening and remove from vehicle.

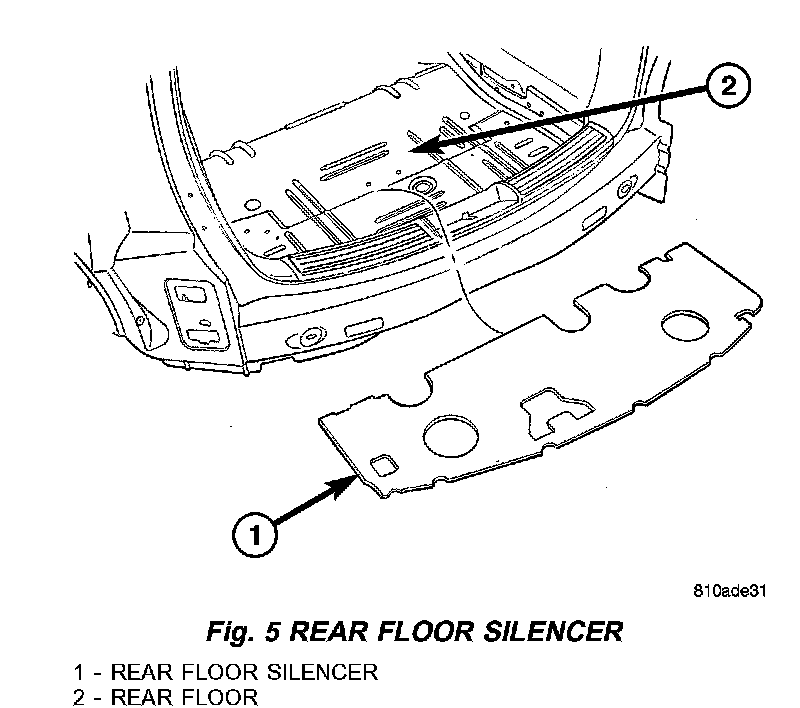

Fig. 5:

19. Remove floor silencer from vehicle (Fig. 5).

INSTALLATION

1. Place floor silencer into position in vehicle (Fig. 5).
2. Insert rear floor carpet into position in vehicle.
3. Insert front carpet. Move carpet into position under instrument panel. Work carpet rearward into position.

CAUTION: Use care when pulling wires and connectors through the carpet.

4. Pull wire harnesses and connectors through carpet.
5. Install fasteners attaching carpet to floor (Fig. 4).
6. Install quarter trim panel.
7. Install B-pillar lower trim.
8. Install liftgate sill scuff plate.
9. Install the floor stowage bin.
10. Install cowl side trim panels.
11. Install front and rear sill scuff plates.
12. Install floor console base assembly.
13. Install rear floor console.
14. Install front floor console.
15. Install front floor console shift bezel.
16. Install shifter knob.
17. Install second row seats.
18. Install first row seats.
19. Install front seats.
