Front Door Latch: Adjustments

ADJUSTMENT

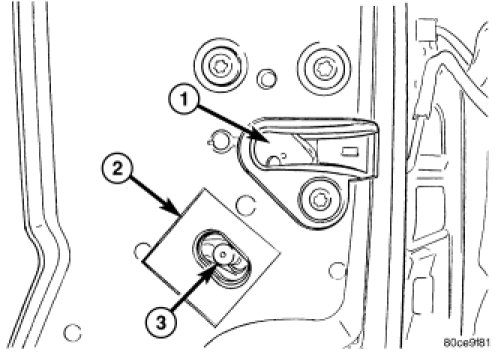

1. Locate access hole and remove the mylar tape covering it.

2. Insert a 5/32 inch hex-wrench through hole and into adjustment screw. Loosen screw.

3. Operate outside handle several times to release any restriction because of misalignment.

4. Tighten adjustment screw to 3 Nm (30 in. lbs.).

5. Test handle for proper operation.
