VTSS Does Not Trip From Right Rear Door

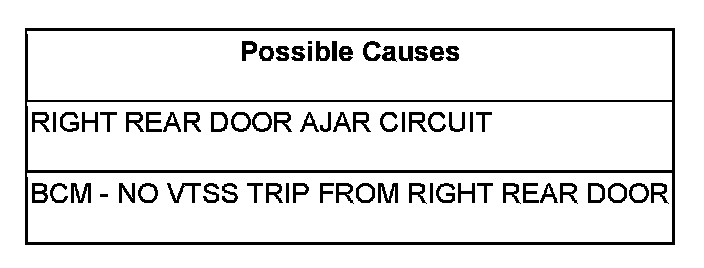

*VTSS DOES NOT TRIP FROM RIGHT REAR DOOR

For a complete wiring diagram refer to Diagrams/Electrical





Diagnostic Test

1. CHECK DOOR AJAR STATUS

NOTE: For the results of this test to be valid, the security system must arm and flash the VTSS indicator properly.

With the scan tool under BCM, read the Right Rear Door Ajar SW status.

Open the right rear door.

Does the scan tool display RIGHT REAR DOOR AJAR SW: CLOSED?

Yes

- Replace and program the Body Control Module.
- Perform VTSS VERIFICATION TEST - 1A. VTSS Verification Test

No

- Refer to symptom RIGHT REAR DOOR AJAR CKT OPEN in the INTERIOR LIGHTING category.
- Perform VTSS VERIFICATION TEST - 1A. VTSS Verification Test
