Front Wiper Hi/Lo Relay Open-IPM

FRONT WIPER HI/LO RELAY OPEN-IPM





For a complete wiring diagram refer to Diagrams/Electrical.





Diagnostic Test

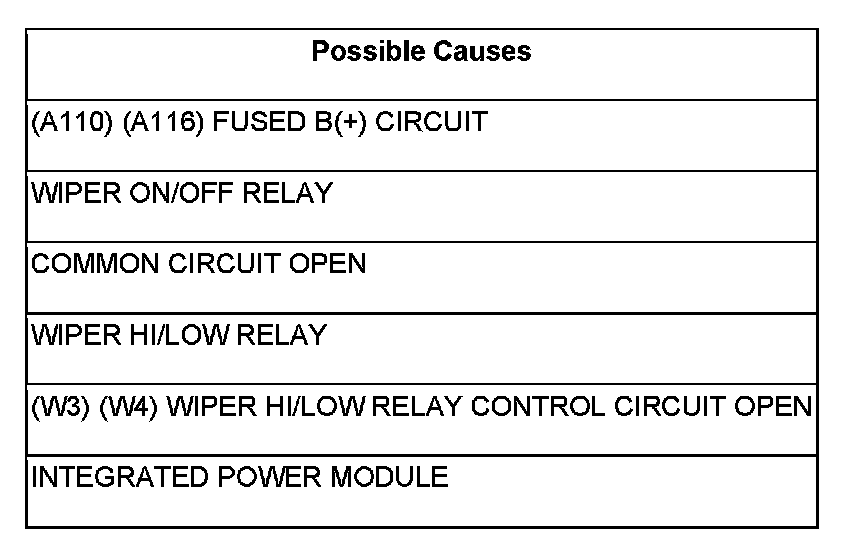

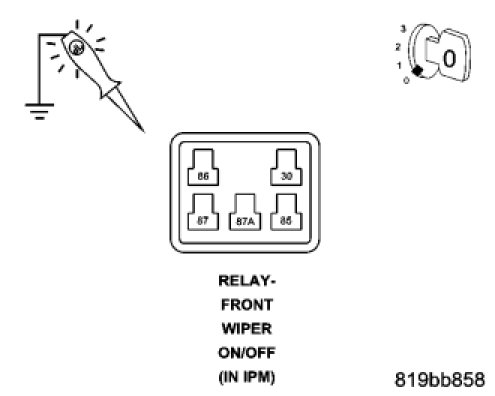

1. FUSED B(+) CIRCUIT OPEN





Turn the ignition off.

Remove the Wiper On/Off Relay from the IPM.

Using a 12-volt test light connected to ground, probe both (A110) (A116) Fused B(+) circuits in the IPM.

NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

Does the test light illuminate brightly at each terminal?

Yes

- Go To 2

No

- Repair the Fused B(+) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. WIPER ON/OFF RELAY

Install a substitute relay in place of the Wiper On/Off Relay.

Turn the ignition on.

Turn the wipers on.

Does the system operate correctly?

Yes

- Replace the Wiper On/Off Relay.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3

3. COMMON CIRCUIT OPEN

Turn the ignition off.

Remove the wiper High/Low Relay from the IPM.

Remove the wiper On/Off Relay from the IPM.

Measure the resistance of the Common Relay circuit between the High/Low Relay and the On/Off relay in the IPM.

Is the resistance below 10.0 ohms?

Yes

- Go To 4

No

- Repair the Common Relay circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

4. WIPER HI/LOW RELAY

Install a substitute relay in place of the Wiper Hi/Low Relay.

Turn the ignition on.

Turn the wipers on.

Does the system operate correctly?

Yes

- Replace the Wiper Hi/Low Relay.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 5

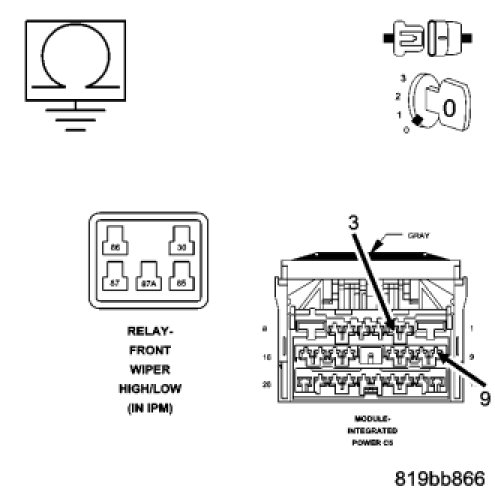

5. (W3) (W4) WIPER HI/LOW RELAY CONTROL CIRCUIT OPEN





Turn the ignition off.

Remove the Wiper Hi/Low Relay from the IPM.

Disconnect the IPM C8 harness connector.

Connect a jumper wire between the Wiper Hi/Low Relay Control circuit at the IPM connector to ground.

Measure the resistance between ground and both (W3) (W4) Wiper Hi/Low Relay Control circuits.

Is the resistance below 5.0 ohms?

Yes

- Replace the Integrated Power Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the applicable Wiper Hi/Low Relay Control circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
