Passenger Fluid Level Too Low

PASSENGER FLUID LEVEL TOO LOW

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

The Occupant Classification Module (OCM) will set this DTC if the Passenger Bladder Pressure Sensor input value is less than 25 A/D counts for more than 20 seconds.





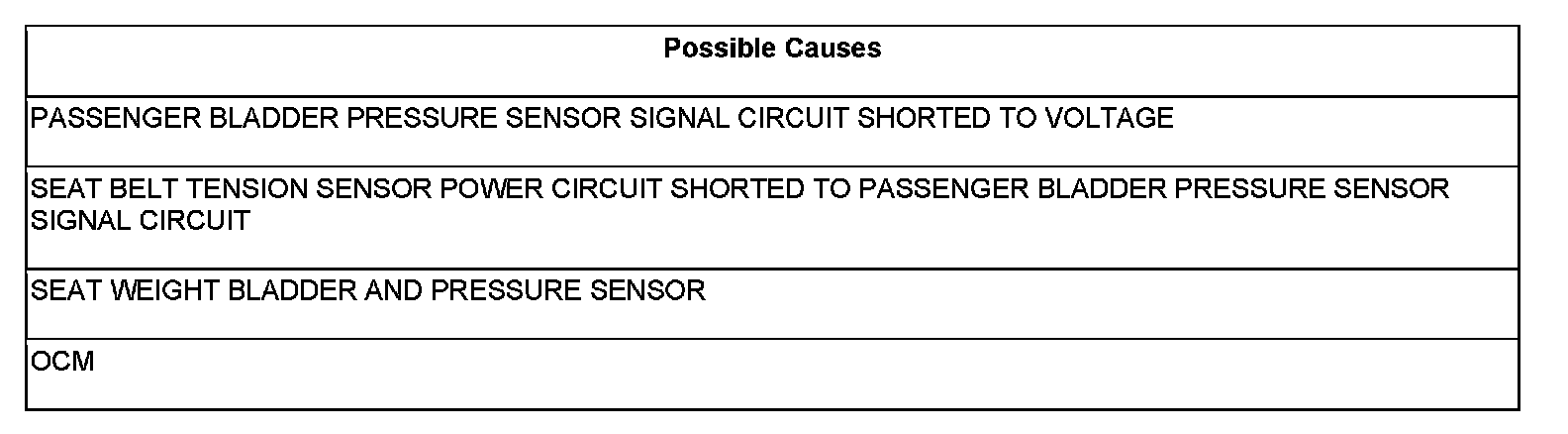

Diagnostic Test

1. REPLACE THE OCS BLADDER AND CUSHION KIT

NOTE: Ensure that the battery is fully charged.

Repair

-
WARNING: If the Occupant Classification Module (OCM) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and personal injury or death.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

NOTE: The Bladder and Cushion Kit are calibrated as an assembly. Do not disconnect the Bladder from the Cushion Kit. Service only as an assembly.

- Replace the OCS Bladder and Cushion Kit.
- Perform SYSTEM VERIFICATION REQUIRED test. System Verification Required
