MSM-EEPROM Checksum Failure

MSM-EEPROM CHECKSUM FAILURE

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition in the on position.

- Set Condition:

The Memory/Heated Seat Adjustable Pedal Module has a internal EEPROM failure.





Diagnostic Test

1. EEPROM REFRESH FAILURE

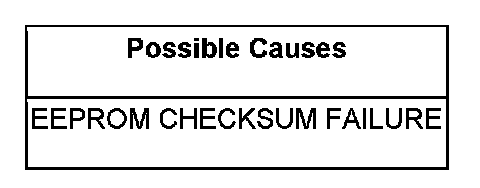

If there are no possible causes remaining, view repair.

Repair

- Replace the Memory/Heated/Seat Adjustable Pedal Module.
- Perform POWER SEAT SYSTEM VERIFICATION TEST - VER 1. Power Seat System Verification Test
