Front IR Sensor Low- ATC

FRONT IR SENSOR LOW- ATC

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

If the IR Sensor fails the internal self test.





NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC is stored. Refer to HVAC System Test (ATC) for stored DTC test procedures. Component Tests and General Diagnostics

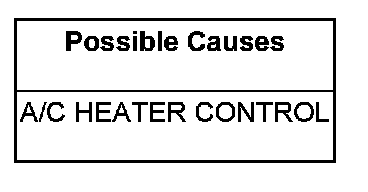

Diagnostic Test

1. REPLACE THE A/C HEATER CONTROL

Repair

- Replace the A/C Heater Control.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
