No PCI Transmission

NO PCI TRANSMISSION

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

The module fails a phase 1 recovery in 8 consecutive attempts.

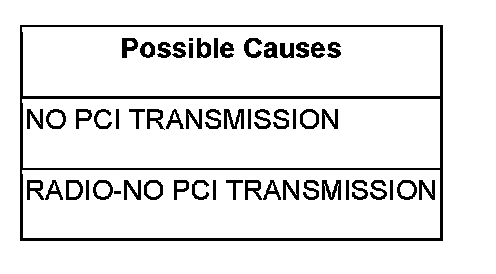

Diagnostic Test

1. NO PCI TRANSMISSION

Turn the ignition on.

Turn the Radio on.

With the scan tool, erase the audio DTC's.

Cycle the ignition switch from off to on and wait 10 seconds.

With the scan tool, read the audio DTC's.

Did this DTC reset?

Yes

- Replace the Radio.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Refer to the wiring diagrams to help isolate a possible short.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
