Internal Failure - SDARS

INTERNAL FAILURE - SDARS

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Ignition key in accessory or run position.

- Set Condition:

Internal bus communication failure between processors.





Diagnostic Test

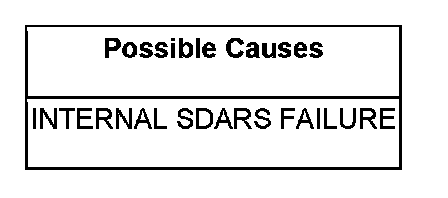

1. INTERNAL SDARS FAILURE

The Satellite Radio Receiver is reporting internal errors, view repair to continue.

Repair

- Replace the Satellite Radio Receiver.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
