CD Changer Read Failure

CD CHANGER READ FAILURE

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Continuously with the ignition and CD Changer turned on.

- Set Condition:

The code will set if a CD that is not formatted as a music CD is installed in the CD Changer.





Diagnostic Test

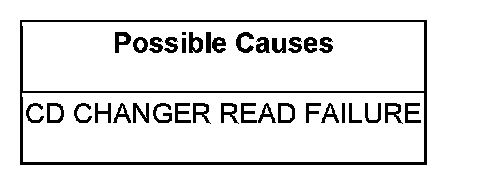

1. CD CHANGER READ FAILURE

Replace the problem CD with a good, clean, unscratched, music CD.

Turn the radio on and select the good CD.

With the scan tool, read DTC's.

Does the scan tool display CD CHANGER READ FAILURE?

Yes

- Replace the CD Changer.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Test complete.
