Parking Lamp
>>
System Diagram
System Diagram
Left Park/Turn Signal Lamp:

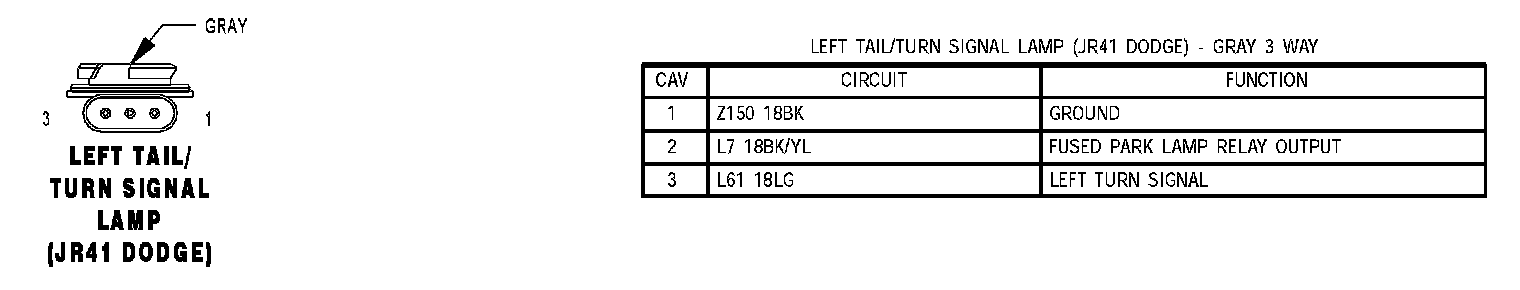

Left Tail/Turn Signal Lamp (JR41 Dodge):
Right Park/Turn Signal Lamp:

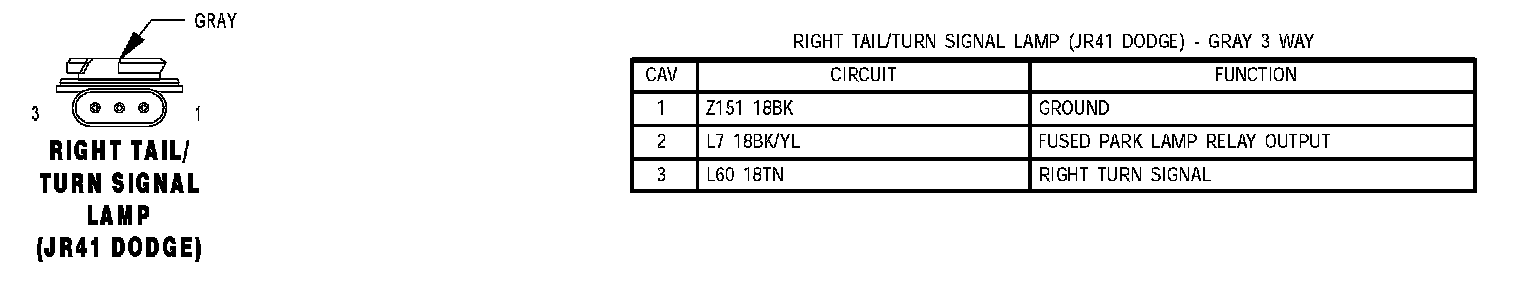

Right Tail/Turn Signal Lamp (JR41 Dodge):
