Rear Door Trim Panel

REMOVAL






1. Open rear door
2. Lower window.
3. Open the screw cap from bottom of arm rest pull cup and remove the screw Fig. 1.
4. Open the screw cap from behind door latch handle and remove the screw.
5. Remove the screws along the bottom of the trim panel.
6. Using a trim stick C-4755 or equivalent, disengage clips holding perimeter of trim panel to rear door.
7. Remove trim panel from inner belt weatherstrip at top of door.
8. Disconnect wiring harness at door opening.
9. Remove top of trim panel from door.

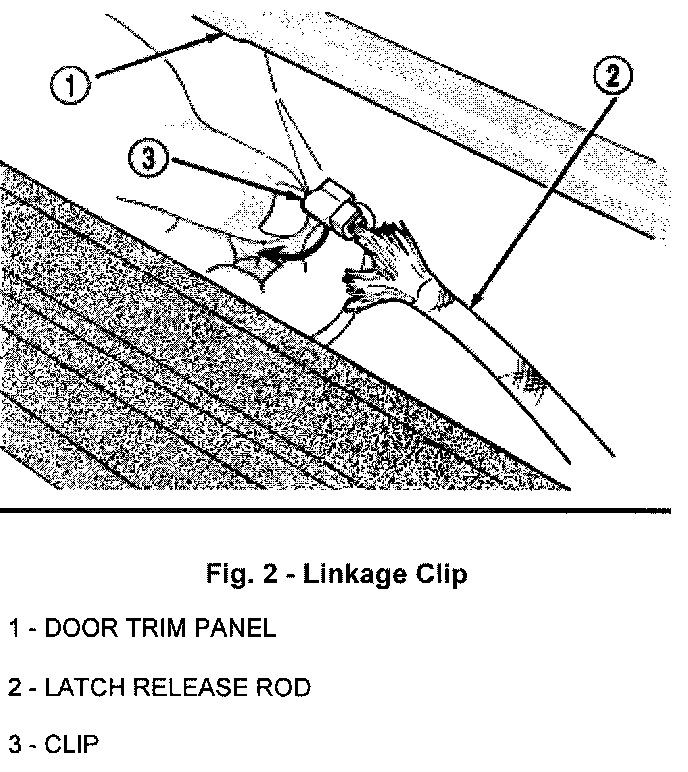

10. Disengage clip holding linkage to latch handle Fig. 2.
11. Remove linkage from latch handle.
12. Lift trim up and off lock button.
13. Remove rear door trim panel from vehicle.

INSTALLATION






1. Position rear door trim panel on vehicle.
2. Connect linkage to latch handle.
3. Engage clip holding linkage to latch handle.
4. Connect wiring harness at door opening.
5. Position the lock knob through the trim panel and engage trim panel from inner belt weatherstrip at top of door.
6. Align the clips attaching perimeter of trim panel to rear door with the grommets and engage
7. Install screws attaching door trim panel to door.
8. Install screw holding door latch handle to door and close the screw cap.
9. Install screw from bottom of arm rest pull cup and close the screw cap.
10. Connect battery.
