Disassembly
T350 MANUAL TRANSAXLEDIFFERENTIAL
DISASSEMBLY

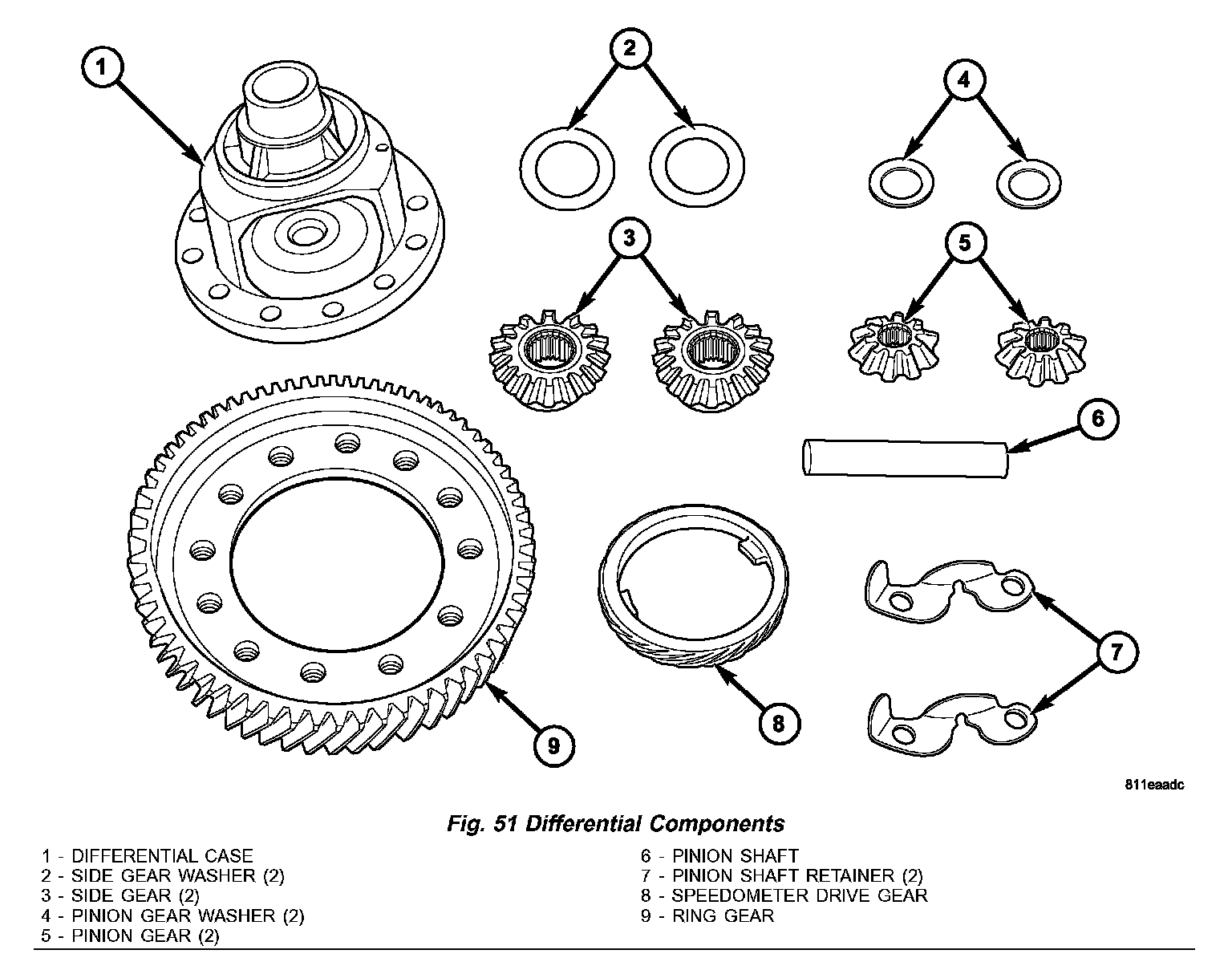

Fig.51 Differential Components:
Refer to the exploded view as necessary when performing the following steps (Fig. 51).

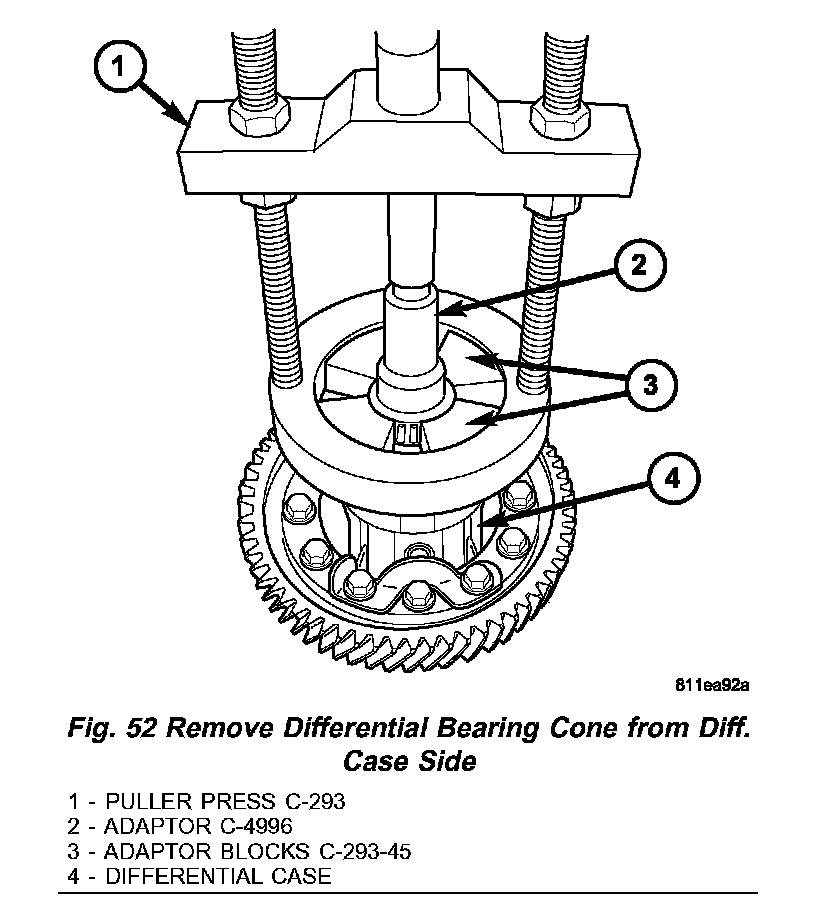

Fig.52 Remove Differential Bearing Cone From Differential Case Side:
(1) Remove differential bearing cones (ring gear and differential case side) using Puller Press C-293(l) (Fig. 52), Adapter Blocks C-293-45 (3), and Adapter 4996 (2).
Fig.53 Pry Off Speedometer Drive Gear:
(2) Using a suitable screwdriver (2) (Fig. 53), pry off and remove speedometer drive gear (1).

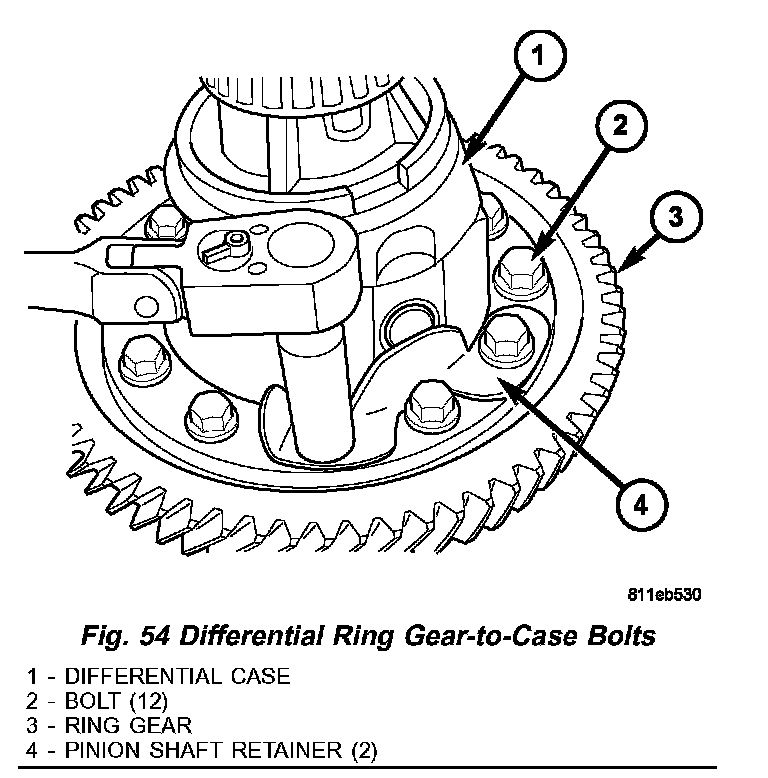

Fig.54 Differential Ring Gear-to-Case Bolts:
(3) If servicing ring gear (3) (Fig. 54) as well, remove remaining ring gear-to-case bolts (2).

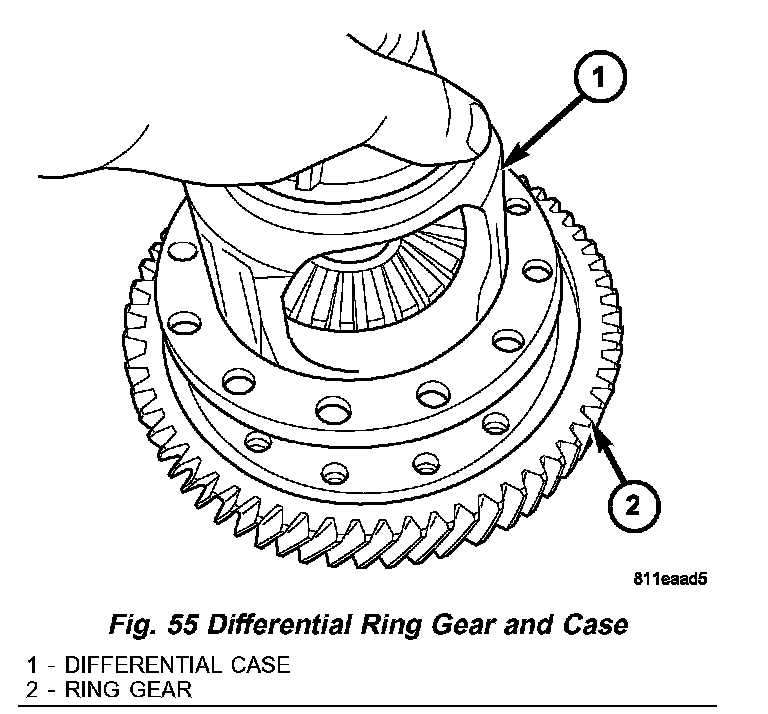

Fig.55 Differential Ring Gear And Case:
(4) If servicing ring gear (2) (Fig. 55) as well, remove remaining ring gear-to-case bolts and remove ring gear (2) from case (1).

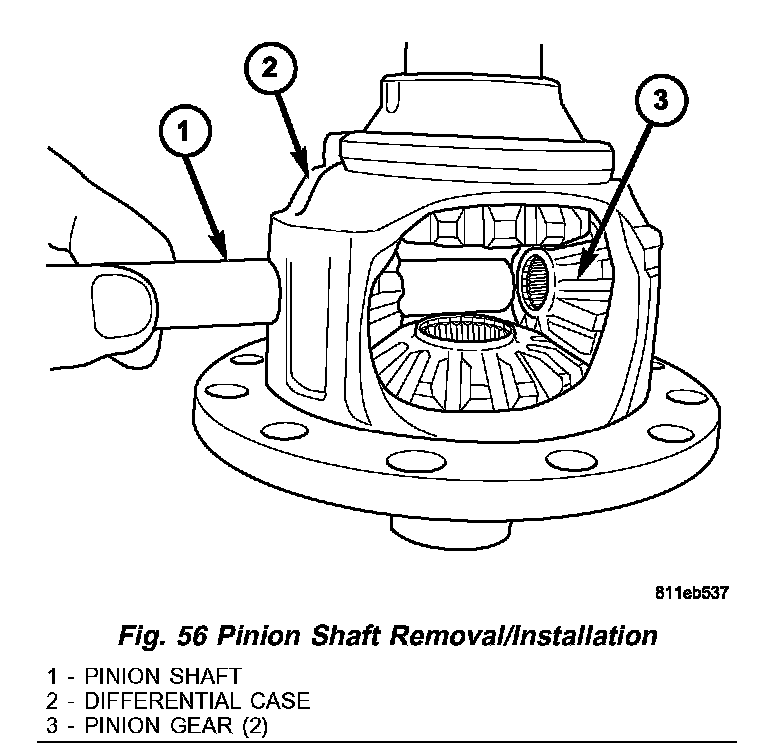

Fig.56 Pinion Shaft Removal/Installation:
(5) Remove pinion shaft (1) (Fig. 56).
Fig.57 Pinion Gear And Washer:
(6) Remove pinion gear (2) (Fig. 57) and thrust washers (1).

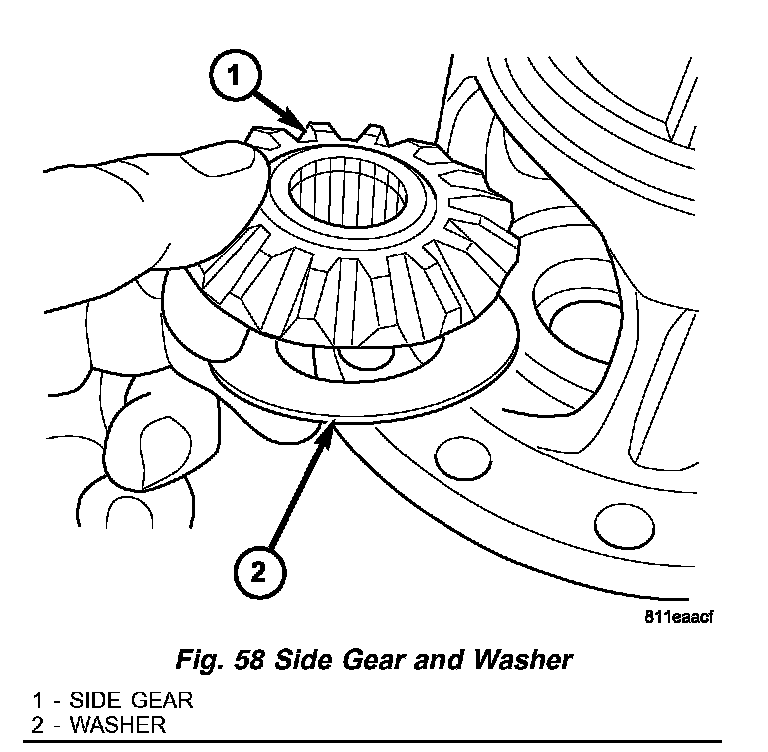

Fig.58 Side Gear And Washer:
(7) Remove side gears (1) (Fig. 58) and thrust washers.
