Installation

41TE AUTOMATIC TRANSAXLE

VALVE BODY

INSTALLATION

NOTE: If valve body assembly is being replaced or reconditioned, it is necessary to perform the PCM Quick Learn Procedure.

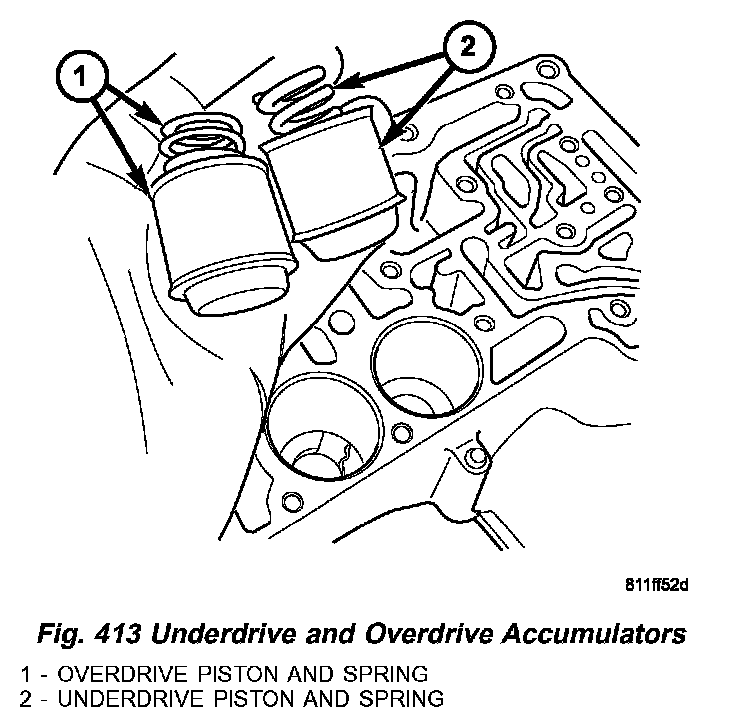

Fig.413 Underdrive And Overdrive Accumulators:

(1) Install underdrive (2) (Fig. 413) and overdrive (1) accumulators.

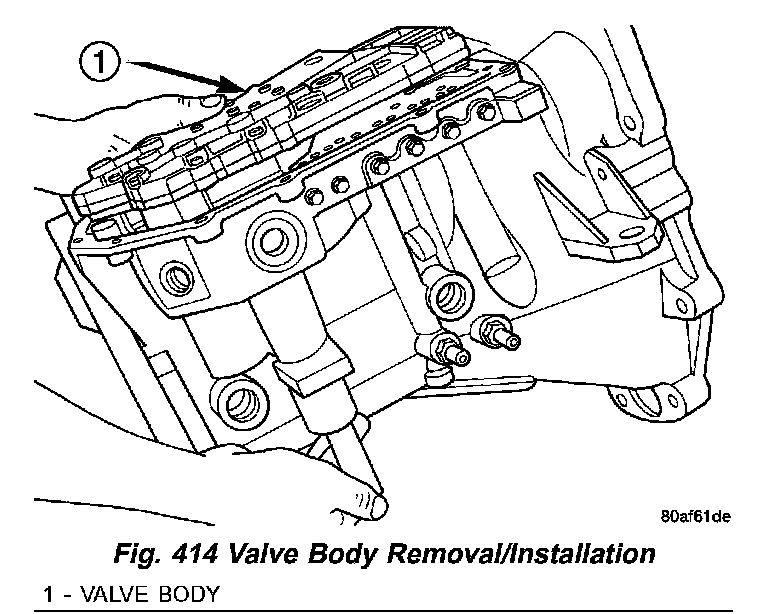

Fig.414 Valve Body Removal/Installation:

(2) Install valve body assembly (1) to transaxle (Fig. 414)

Fig.415 Valve Body-to-Case Bolts:

(3) Install and torque valve body-to-transaxle case bolts (Fig. 415)

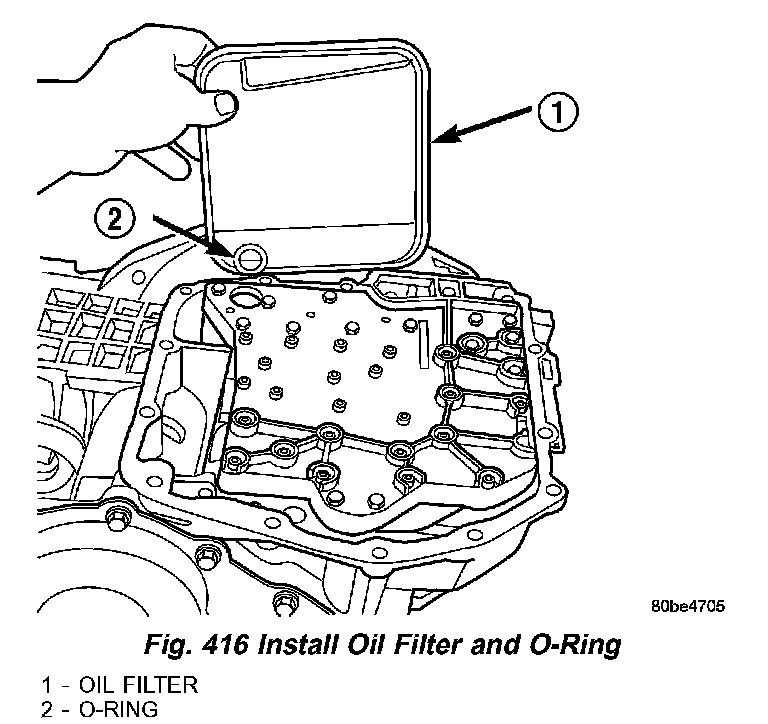

Fig.416 Install Oil Filter And O-Ring:

(4) Install transaxle oil filter (1) (Fig. 416). Inspect the O-ring (2) and replace if necessary.

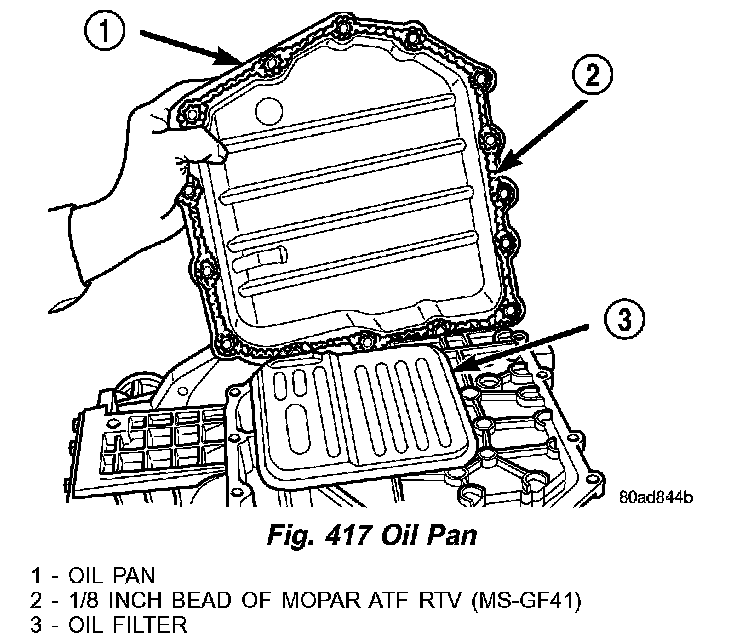

Fig.417 Oil Pan:

(5) Ensure the transaxle oil pan and transaxle case sealing surfaces are clean and dry. Install an 1/8" bead of Mopar ATF RTV (MS-GF41) to the oil pan and install (Fig. 417).

Fig.418 Oil Pan Bolts:

(6) Torque oil pan-to-transaxle case bolts (Fig. 418) to 19 Nm (165 inch lbs.
(7) Lower vehicle.
(8) Connect transmission range sensor connector.
(9) Install manual valve lever to manual shaft.
(10) Install gearshift cable to manual valve lever.
(11) Connect battery negative cable.
(12) Fill transaxle with Mopar ATF +4 Transmission fluid.
