Fuel Injector: Diagrams

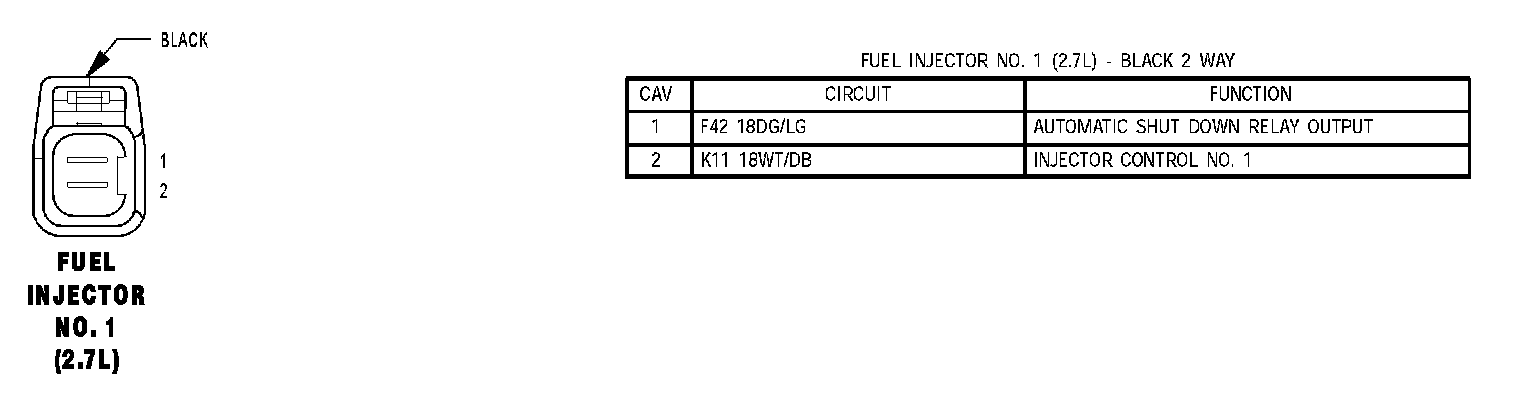

Fuel Injector No.1 (2.7L):

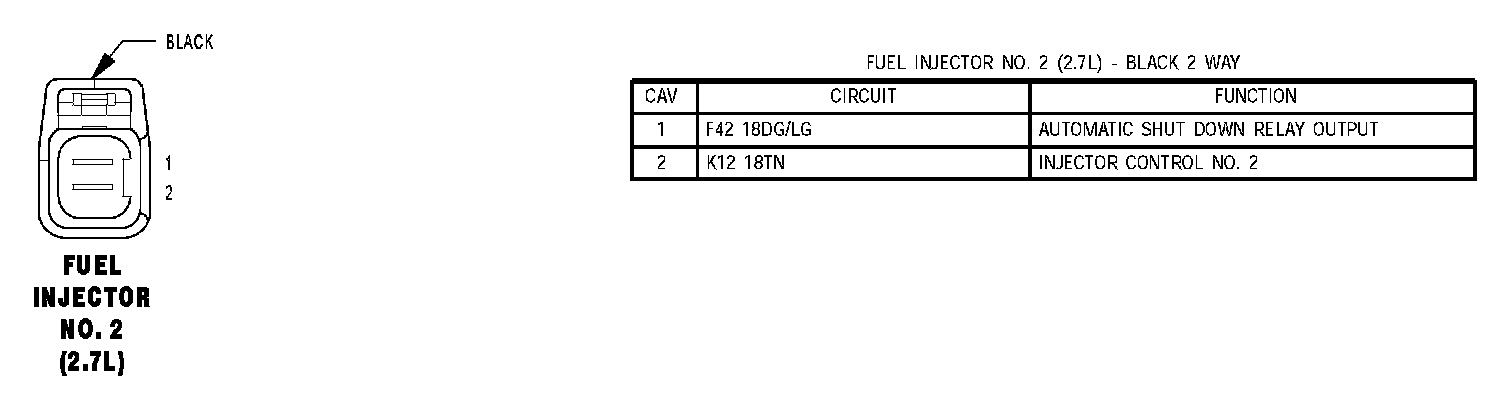

Fuel Injector No.2 (2.7L):

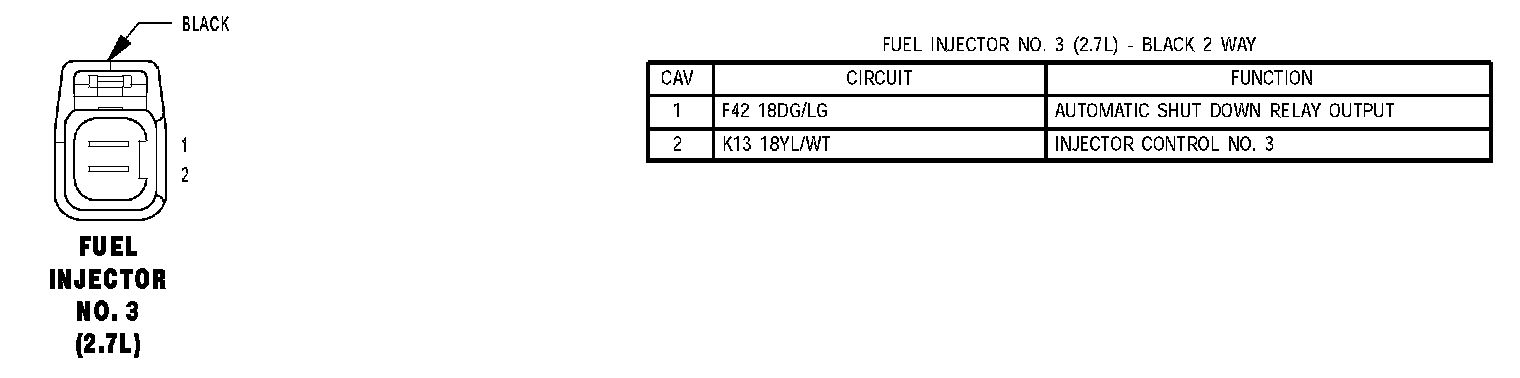

Fuel Injector No.3 (2.7L):

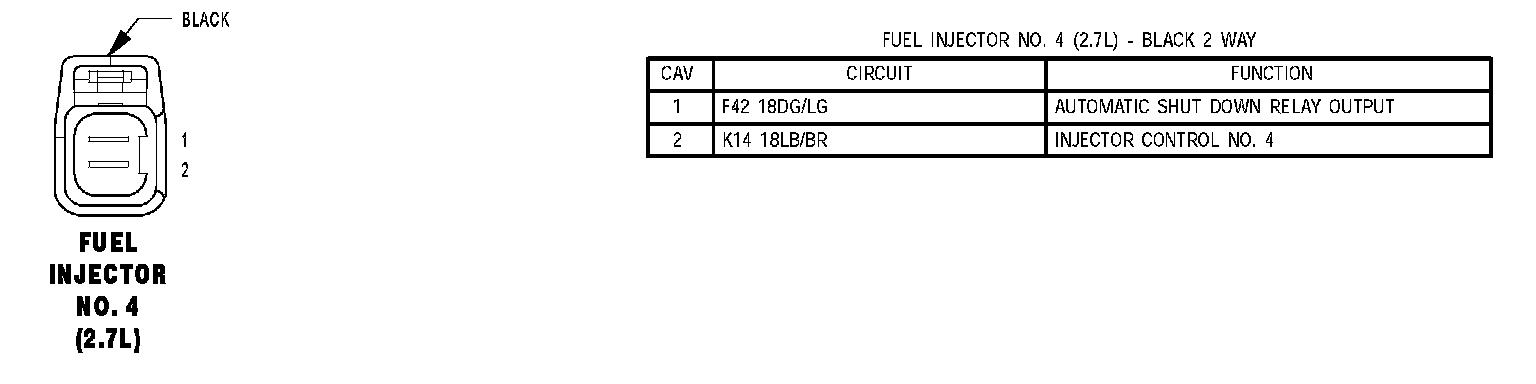

Fuel Injector No.4 (2.7L):

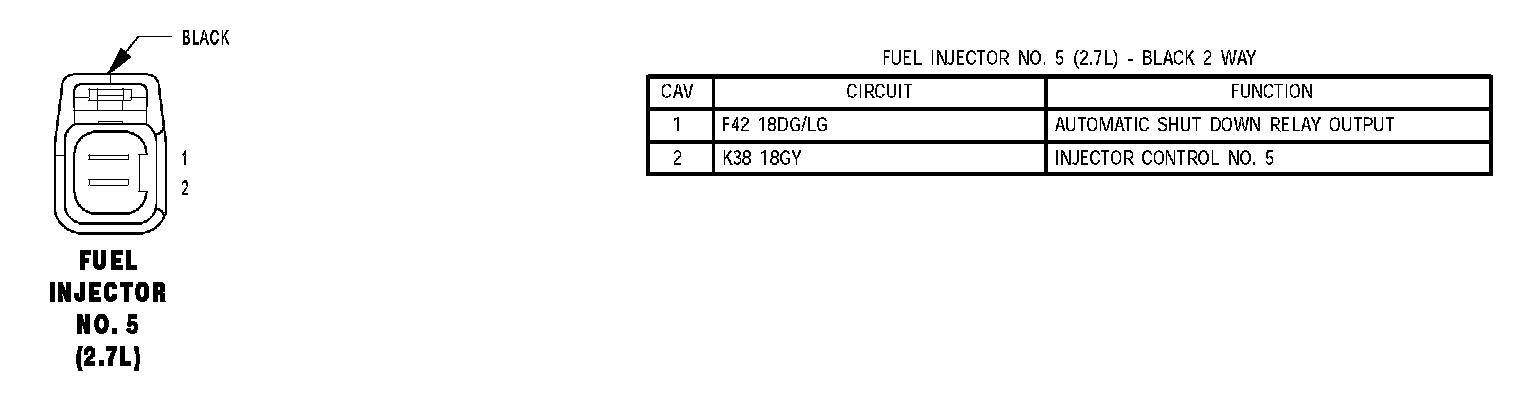

Fuel Injector No.5 (2.7L):
Fuel Injector No.6 (2.7L):
